Identifier GUID-3FC6C23E-FB0C-48D2-8115-F92925FAD768
Status Released
Replacing the power and
volume-buttons board
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-01FADD4E-66C3-479E-B07A-F86EE1C61B66
Status Released
Procedure

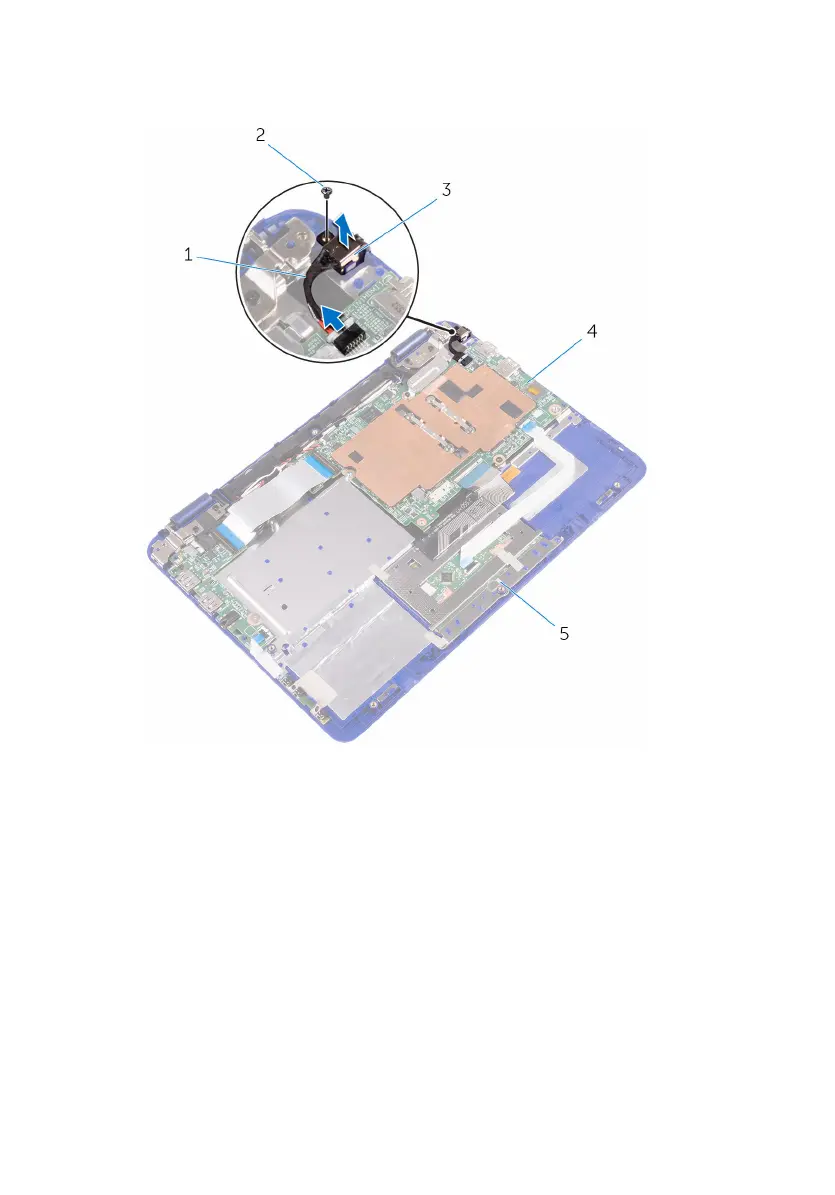

1 Place the power and volume-buttons board into the slot on the palmrest and
keyboard assembly.
2 Adhere the tape that secures the power and volume-buttons board to the
palmrest and keyboard assembly.
3 Connect the power and volume-buttons board cable to the I/O board.
Identifier GUID-5D11F191-379D-45B3-B13C-490E72CE2C05
Status Released
Post-requisites
1 Replace the battery.
2 Replace the base cover.
26
