Replacing the power-adapter
port
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in
Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-4A487AAB-CB71-49FD-BA58-02C2611A44BD
Status Released
Post-requisites
1 Replace the battery.
2 Replace the base cover.
Identifier GUID-D08F909E-7C99-434A-AF4E-F65606D1C38F
Status Released

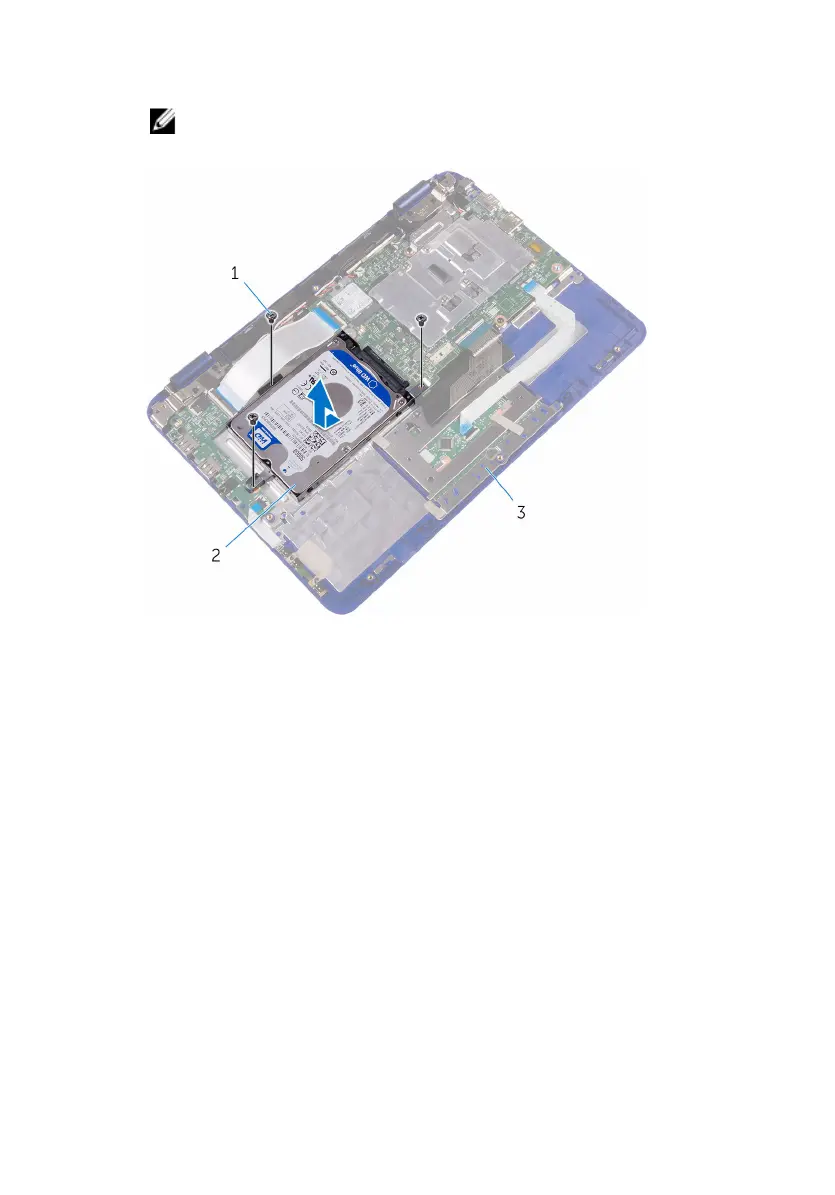

Procedure
1 Place the power-adapter port into the slot on the palmrest and keyboard
assembly.
2 Align the screw hole on the power-adapter port with the screw hole on the
palmrest and keyboard assembly.
3 Replace the screw that secures the power-adapter port to the palm rest and
keyboard assembly.
4 Connect the power-adapter port cable to the system board.
