Replacing the I/O board
WARNING: Before working inside your computer, read the safety
information that shipped with your computer and follow the steps in Before
working inside your computer. After working inside your computer, follow
the instructions in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-D5601B08-D7CC-42EF-9F00-4702A8DFA5E7
Status Released
Procedure

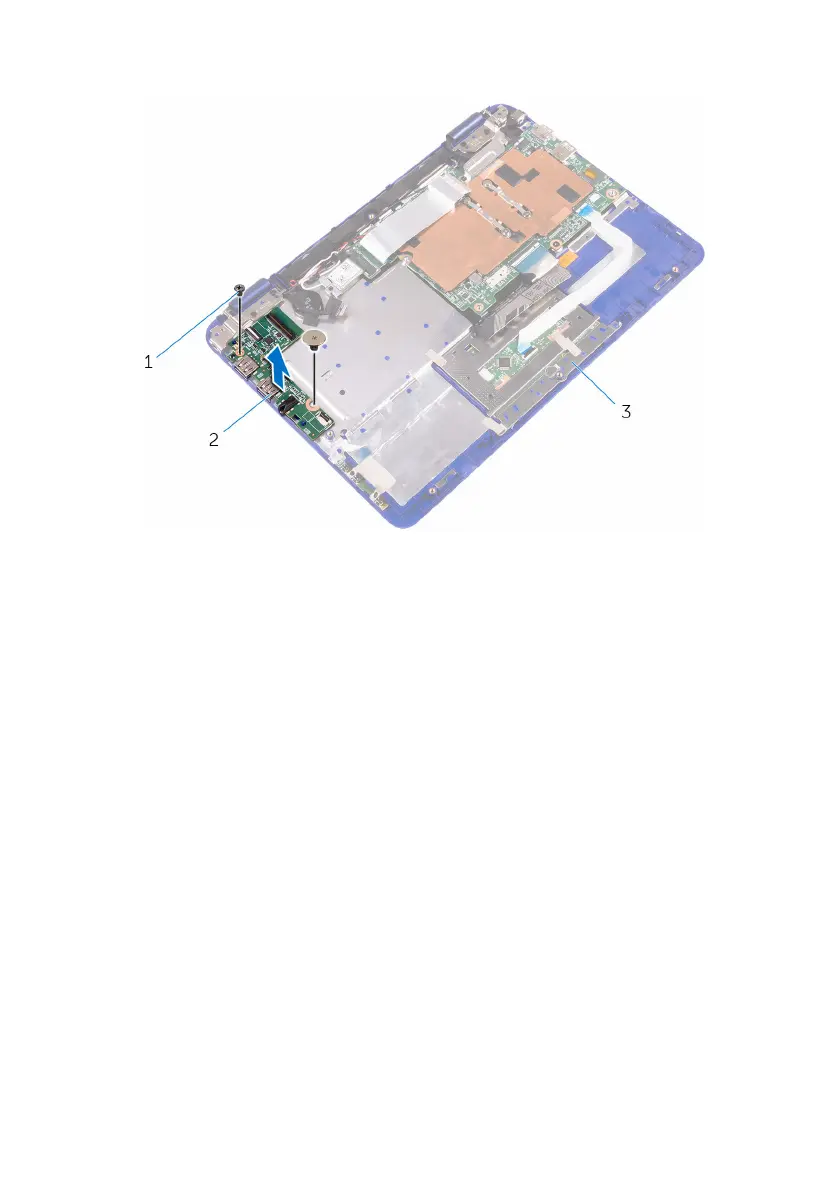

1 Place the I/O board on the palmrest and keyboard assembly.
2 Align the screw holes on the I/O board with the screw holes on the palmrest
and keyboard assembly.
3 Replace the screws that secure the I/O board to the palmrest and keyboard
assembly.
4 Connect the I/O-board cable and power and volume-buttons board cable to the
I/O board.
5 Connect the sensor-board cable to the I/O board.
6 Adhere the tape that secures the sensor-board cable to the I/O board.
Identifier GUID-63DE5740-46B3-4E5F-B5D0-8C8036ED5E7E
Status Released
Post-requisites
1 Follow the procedure from step 3 to step 4 in “Replacing the hard drive”.
2 Replace the battery.
3 Replace the base cover.
