1118 Configuring Differentiated Services
3
Click
Apply
to add the new class.
4
To view a summary of the classes configured on the switch, click
Show All
.

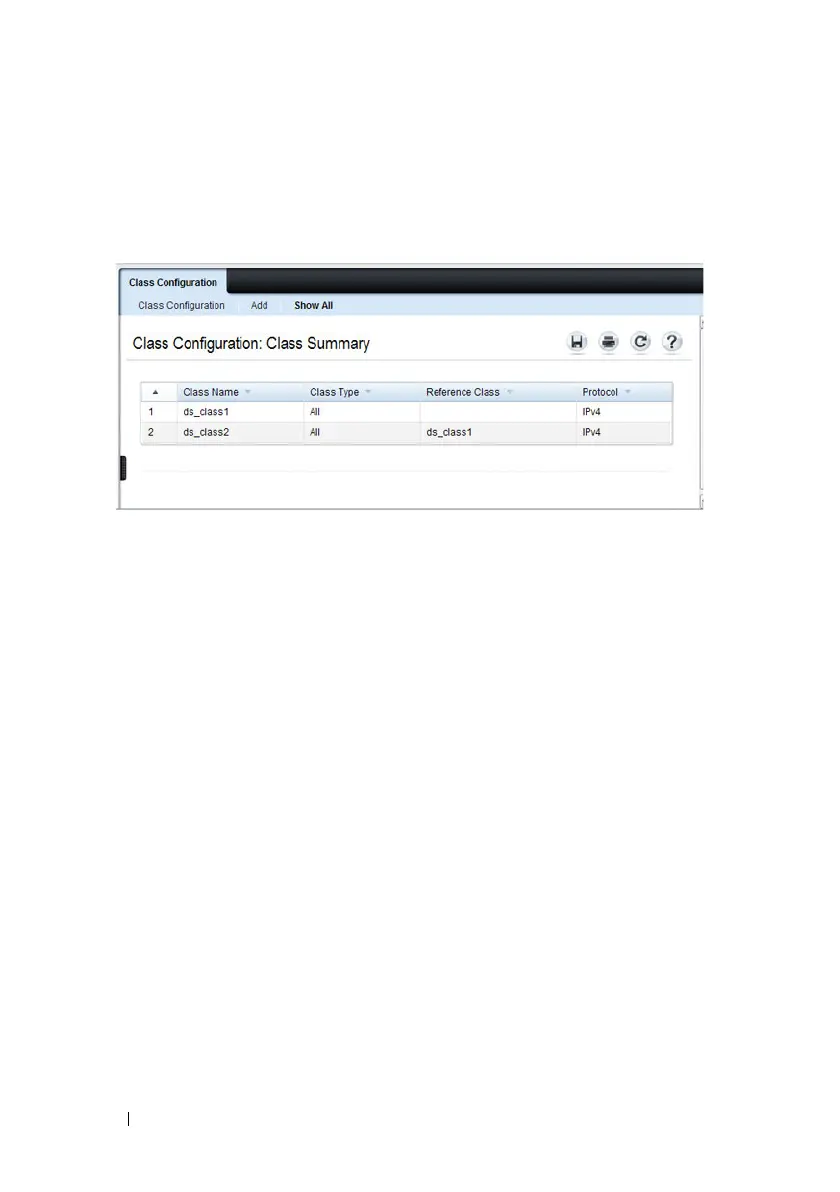

Figure 40-4. View DiffServ Class Summary
Class Criteria
Use the
DiffServ Class Criteria page to define the criteria to associate with a
DiffServ class. As packets are received, these DiffServ classes are used to
identify packets.
To display the
page, click Quality of Service
→
Differentiated Services
→
Class Criteria in the navigation panel.
