Dell PowerConnect 8024 - LLPF Configuration

688 Configuring Port-Based Traffic Control

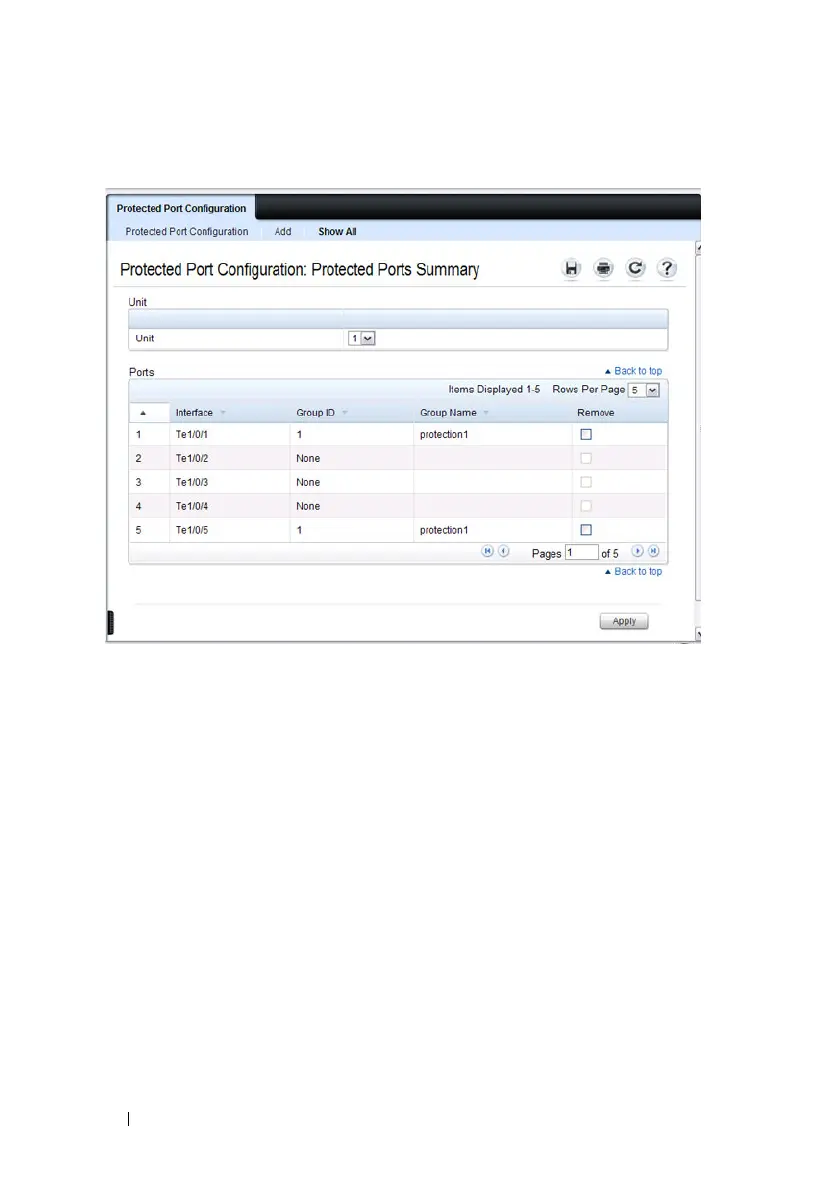

Figure 25-7. View Protected Port Information
11 To remove a port from a protected port group, select the Remove check
box associated with the port and click
Apply .
LLPF Configuration
Use the LLPF Interface Configuration page to filter out various proprietary
protocol data units (PDUs) and/or ISDP if problems occur with these
protocols running on standards-based switches.
To display the LLPF Interface Configuration page, click Switching
→
Network Security
→ Proprietary Protocol Filtering → LLPF Interface
Configuration the navigation menu.
