378 Monitoring Switch Traffic

RMON Event Log

Use the RMON Event Log page to display a list of RMON events.

To display the page, click Statistics/RMON

→

RMON

→

Events Log in the

navigation panel.

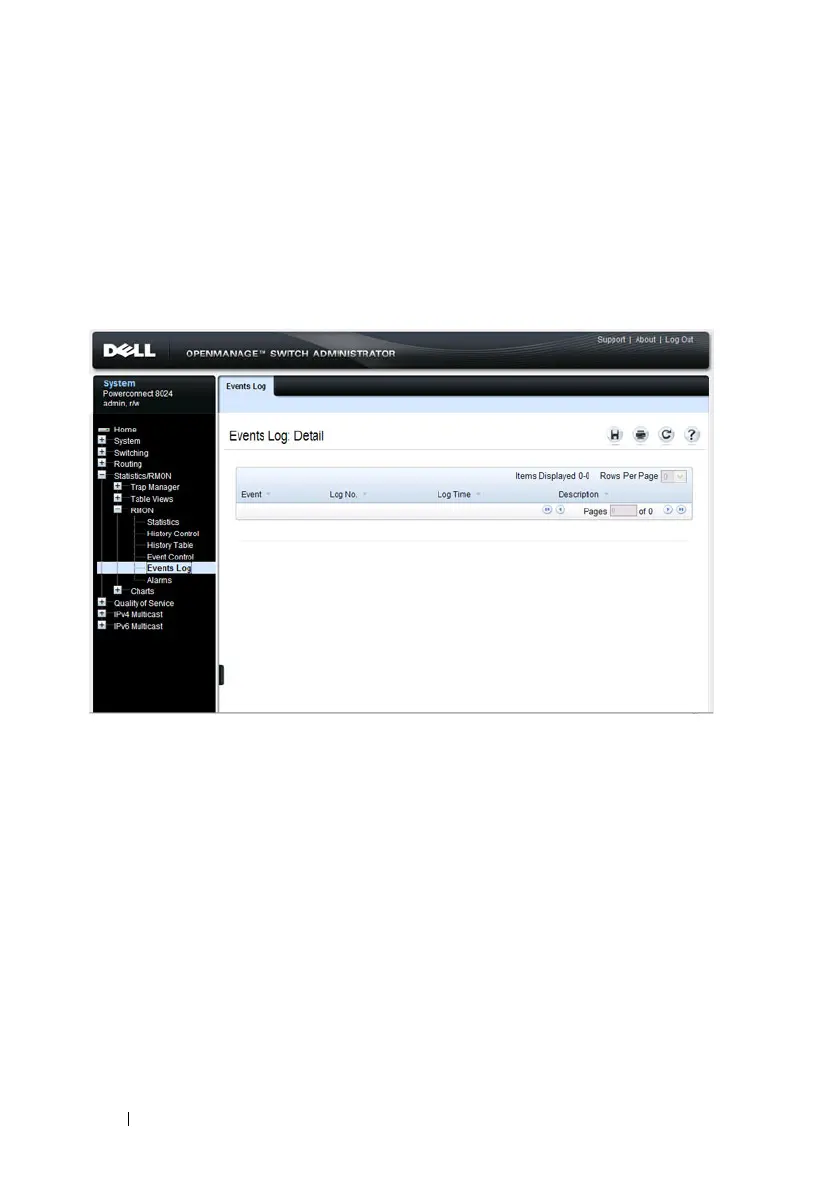

Figure 16-19. RMON Event Log
