Configuring Routing Interfaces 865

Loopbacks Configuration

Use the Loopbacks Configuration

page to create, configure, or remove

loopback interfaces. You can also set up or delete a secondary address for a

loopback.

To display the page, click Routing

→

Loopbacks

→

Loopbacks

Configuration in the navigation panel.

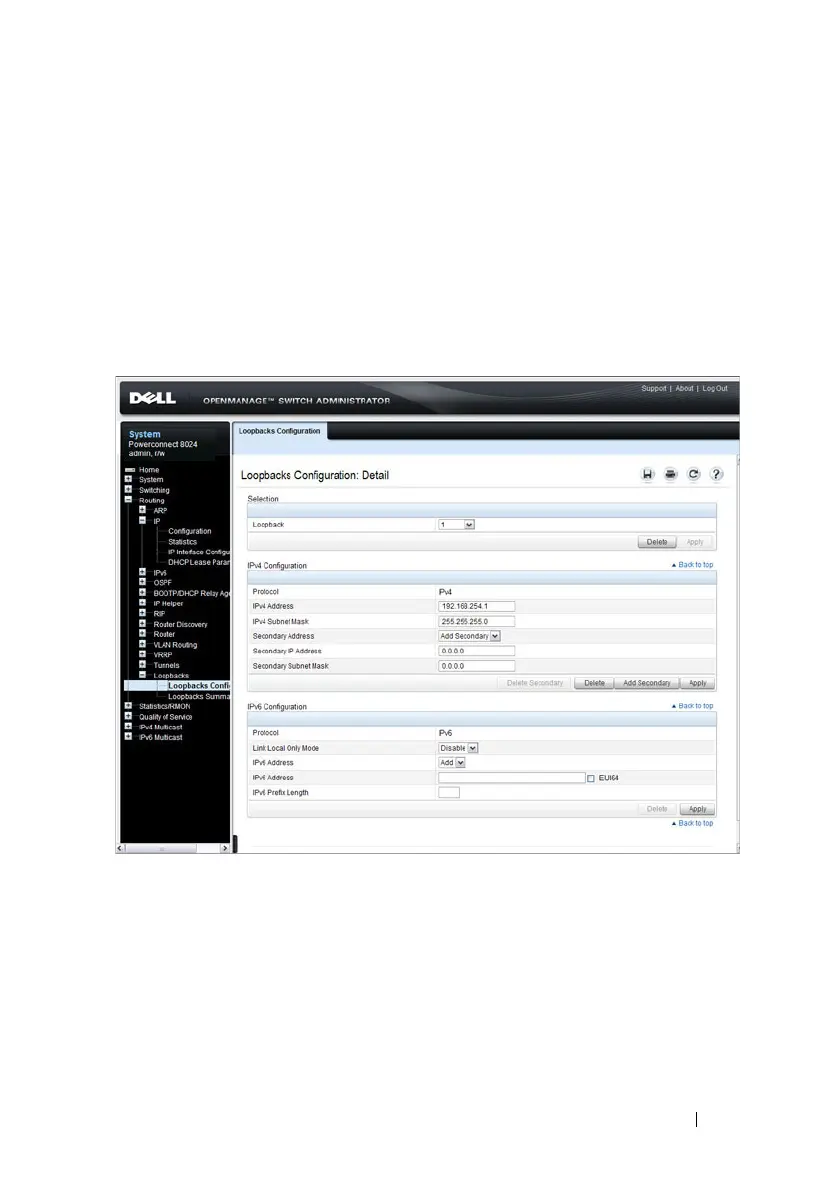

Figure 31-7. Loopback Configuration

Main Page
