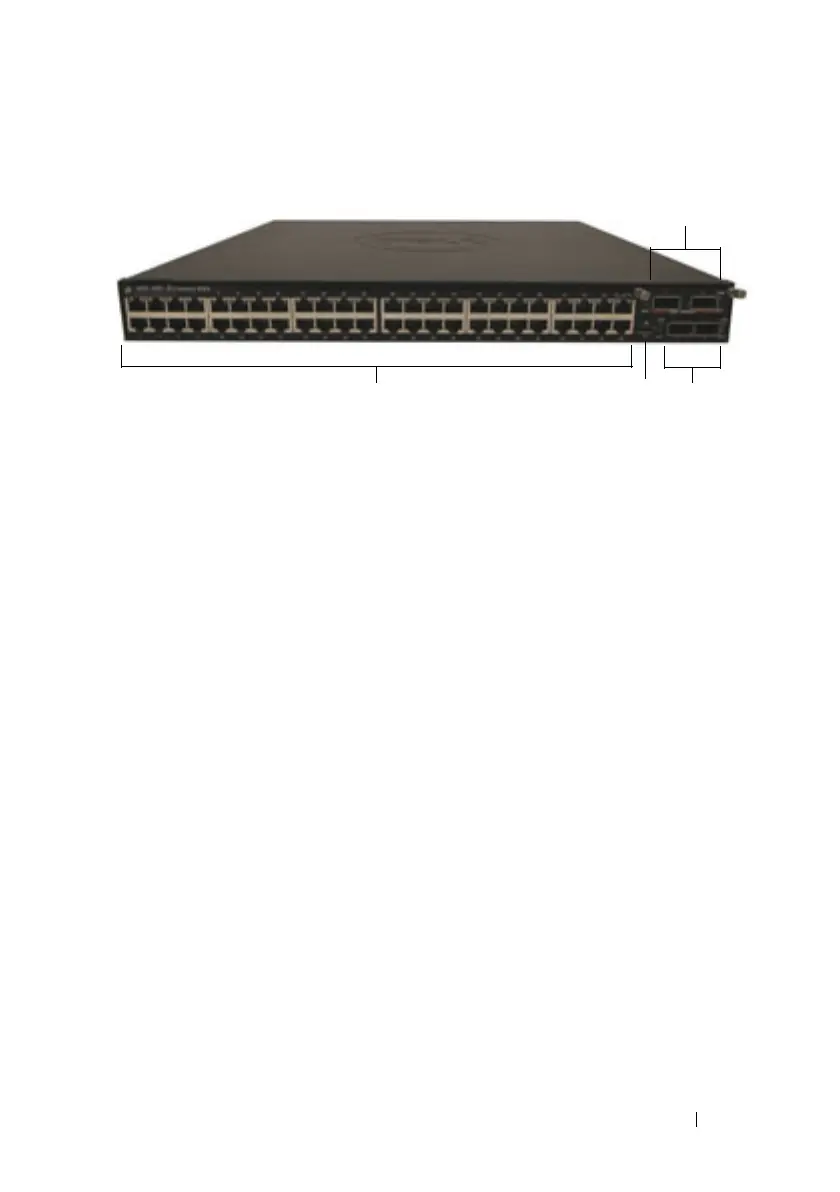

Figure 3-5. PowerConnect 8164 Front Panel
PowerConnect 8164 switches can be stacked with other PowerConnect 81xx
switches using the 10G or 40G SFP+ or QSFP modules in the module bay or
fixed QSFP ports.
PowerConnect 8164F Front Panel
The PowerConnect 8164F front panel provides the following ports:
• 48 x 10GbE fiber ports
• A USB port. See "USB Port (Power Connect 8100-series switches only)" on
page 94.
• Two fixed QSFP ports, each supporting 4 x 10G or 1 x 40G connections
• One module bay that supports the following modules:
– 2 x 40 Gig QSFP (each QSFP may be configured as 4 x 10 Gig ports)
–4 x SFP+ module
– 4 x 10GBaseT module
See "Hot-Pluggable Interface Modules" on page 92 for more information.
10GbE Copper Ports
USB port
Fixed QSFP
ports
Module bay

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
