1188 Managing IPv4 and IPv6 Multicast

Multicast Interface Configuration

Use the Interface Configuration

page to configure the TTL threshold of a

multicast interface. At least one VLAN routing interface must be configured

on the switch before fields display on this page.

To display the page, click IPv4 Multicast

→

Multicast

→

Interface

Configuration in the navigation panel.

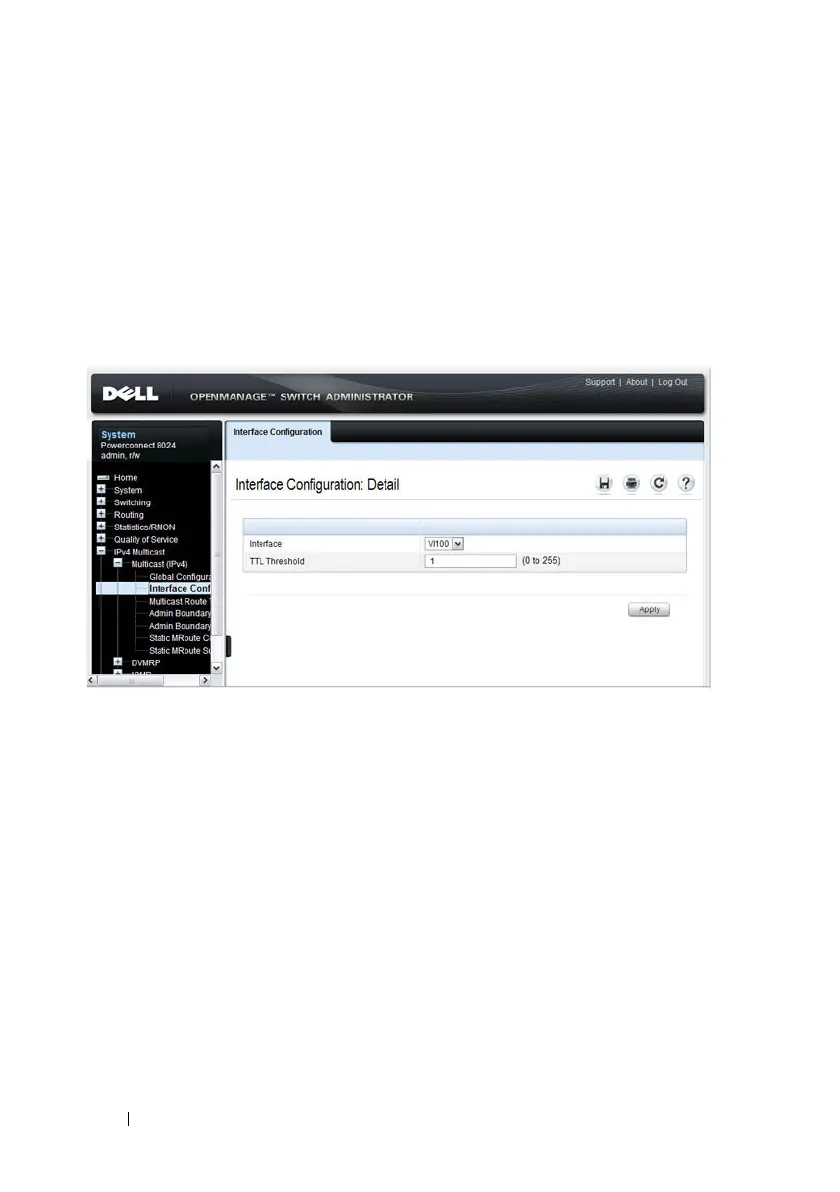

Figure 43-10. Multicast Interface Configuration
