Dell PowerConnect 8024 User Manual

932 Configuring L2 and L3 Relay Features
IP Helper Global Configuration
Use the Global Configuration page to add, show, or delete UDP Relay and
Helper IP configuration
To display the page, click Routing
→ IP Helper → Global Configuration in
the navigation panel.

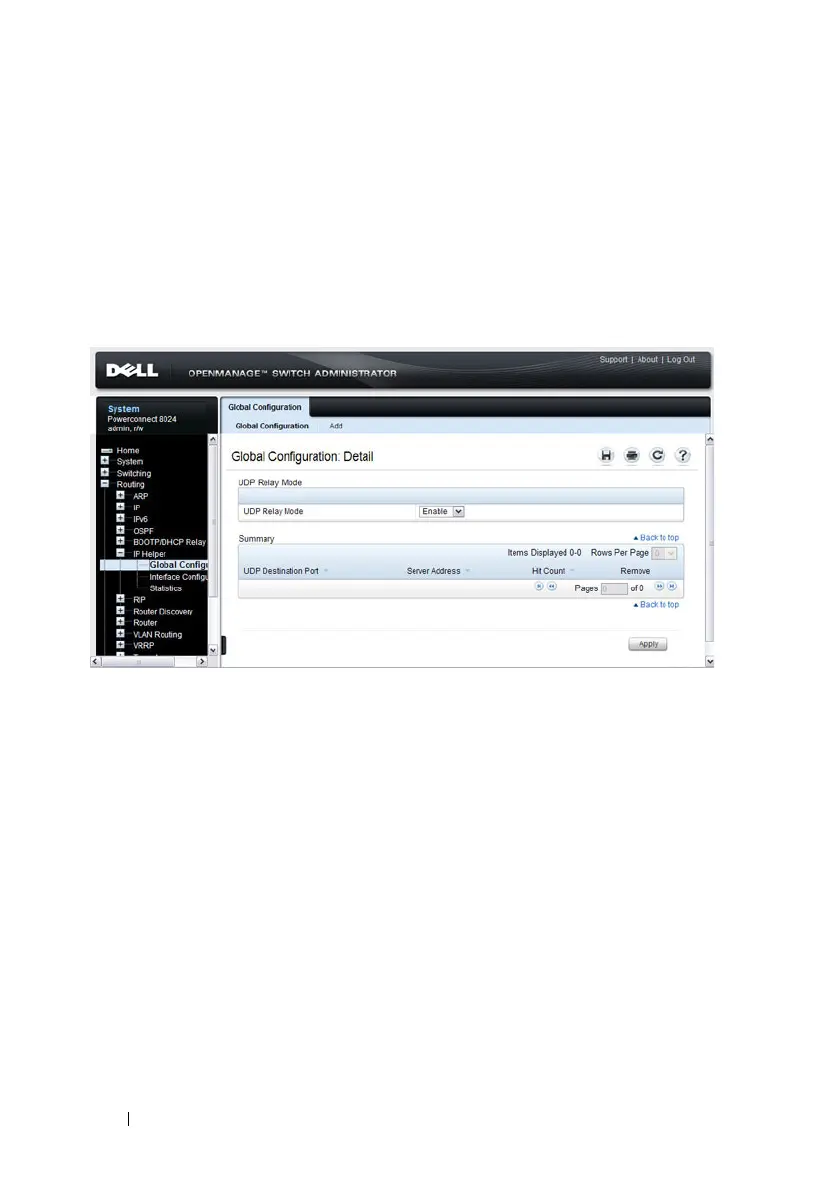

Figure 34-8. IP Helper Global Configuration
Adding an IP Helper Entry
To configure an IP helper entry:
1.
Open the IP Helper Global Configuration page .
2. Click Add to display the Add Helper IP Address page :

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
