88 Hardware Overview
• The switch automatically detects crossed and straight-through cables on
RJ-45 ports.
• RJ-45 ports support full-duplex mode 100/1000/10000 Mbps.
• PowerConnect 8024 switches can be stacked using the 10G SFP+ fiber
ports. The 10G ports default to Ethernet mode and must be configured to
be used as stacking ports.
PowerConnect 8024F Front Panel
The PowerConnect 8024F front panel provides 24 SFP/SFP+ ports, four of
which are combined with 100M/1G/10GBase-T ports.

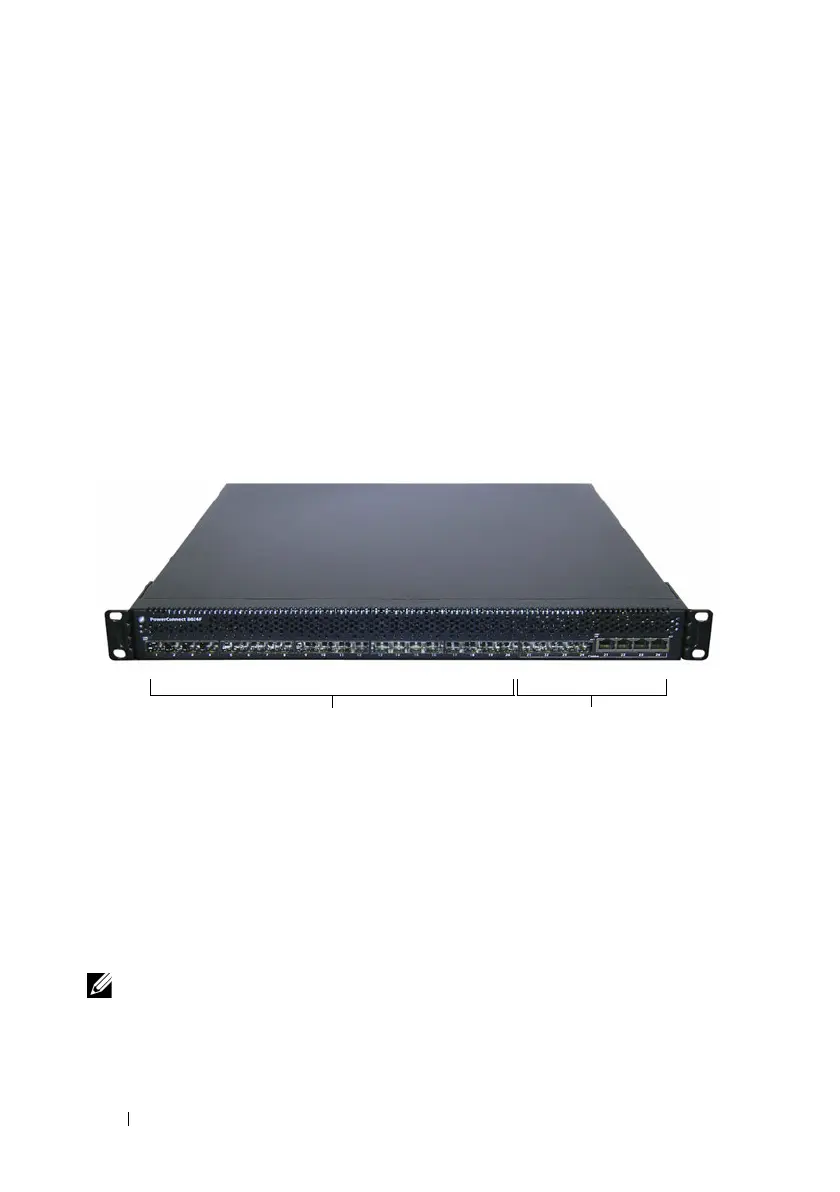

Figure 3-2. PowerConnect 8024F Front Panel
• The switch automatically detects crossed and straight-through cables on
RJ-45 ports.
• SFP ports support both SX and LX modules.
• RJ-45 ports support full-duplex mode 100/1000/10000 Mbps.
• PowerConnect 8024F switches can be stacked with other PowerConnect
8024F switches using the 10G SFP+ fiber ports.
NOTE: A combo port may have both the RJ-45 and SFP+ ports cabled to a remote
device and, if so, the SFP+ port will be the active port while the RJ-45 port will be
disabled. The SFP+ ports comply with IEC60950-1, IEC60825-1, and IEC60825-2
and are contained within a fire enclosure.
SFP/SFP+ Ports Combo Ports
