1192 Managing IPv4 and IPv6 Multicast

Multicast Static MRoute Configuration

Use the Static MRoute Configuration

page to configure a new static entry in

the Mroute table or to modify an existing entry.

To display the page, click IPv4 Multicast

→

Multicast

→

Static MRoute

Configuration in the navigation panel.

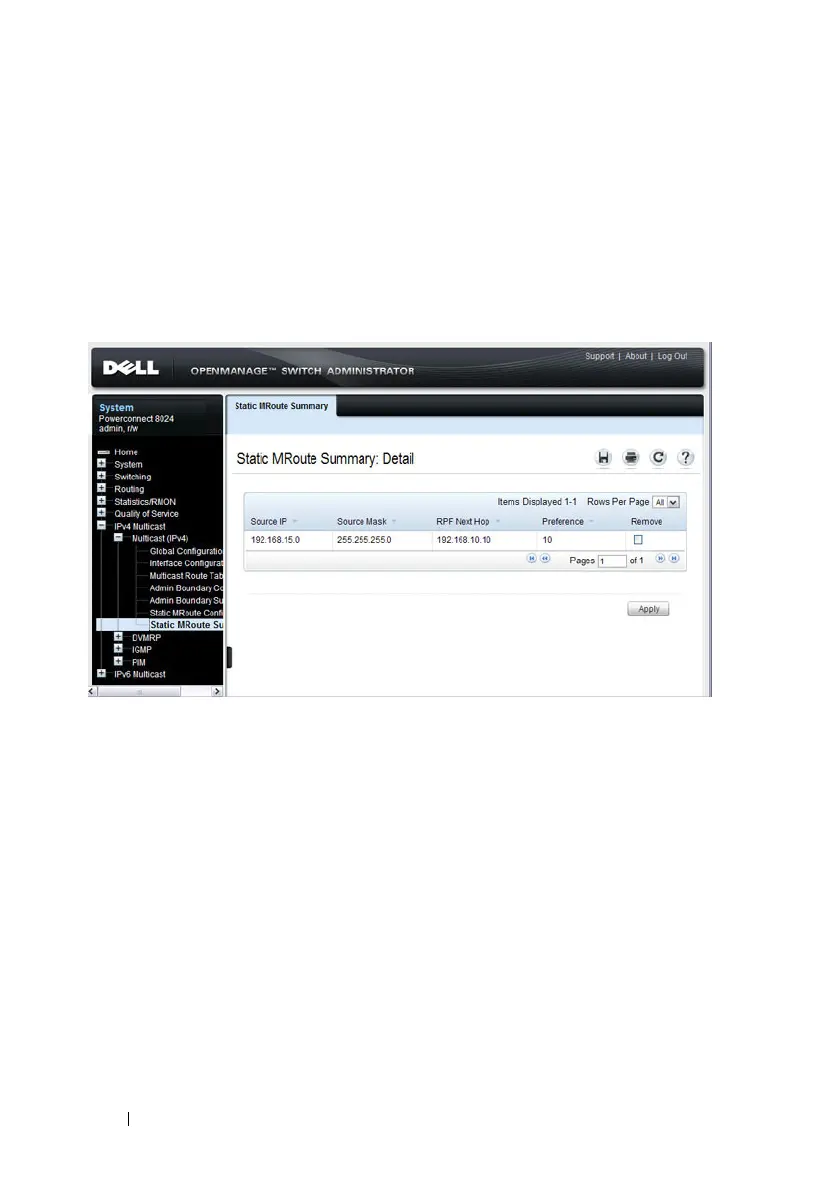

Figure 43-14. Multicast Static MRoute Configuration
