384 Monitoring Switch Traffic

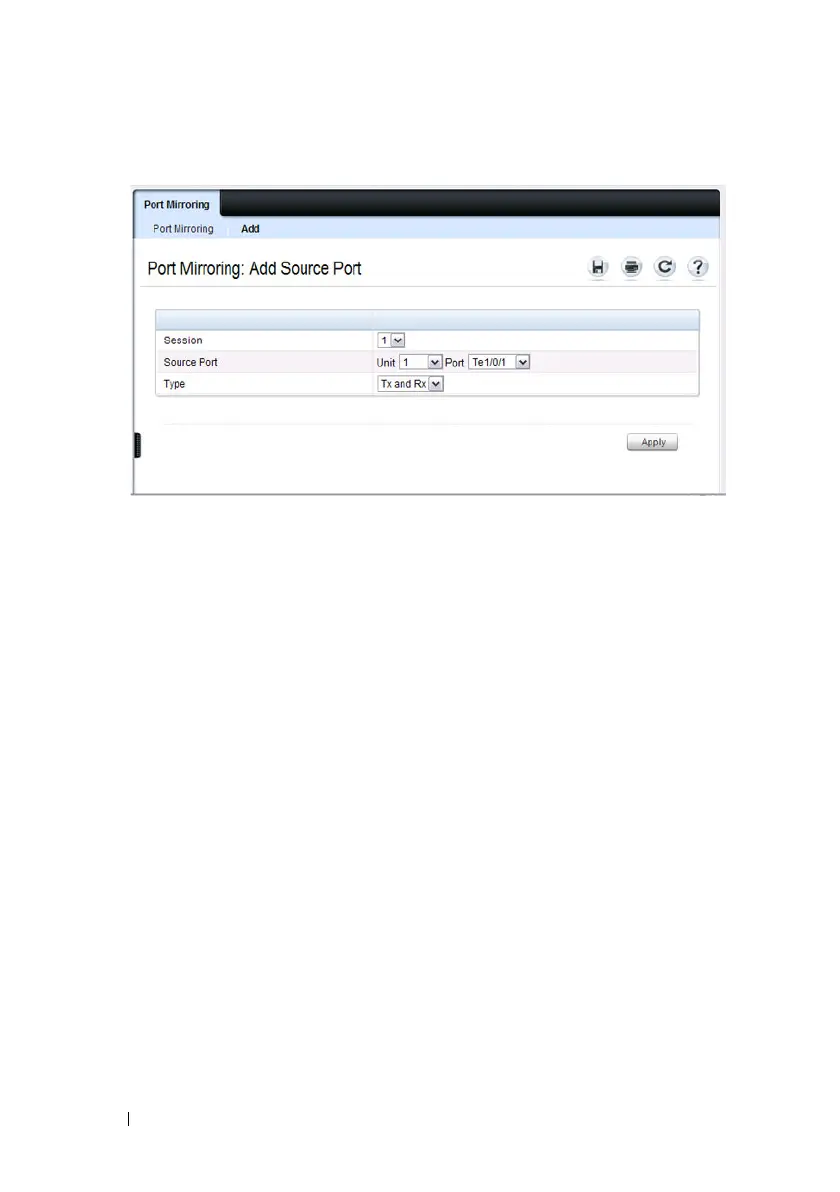

Figure 16-25. Add Source Port

Click

Apply

Repeat the previous steps to add additional source ports.

Click

Port Mirroring

to return to the

Port Mirroring

page.

Enable the administrative mode and specify the destination port.
