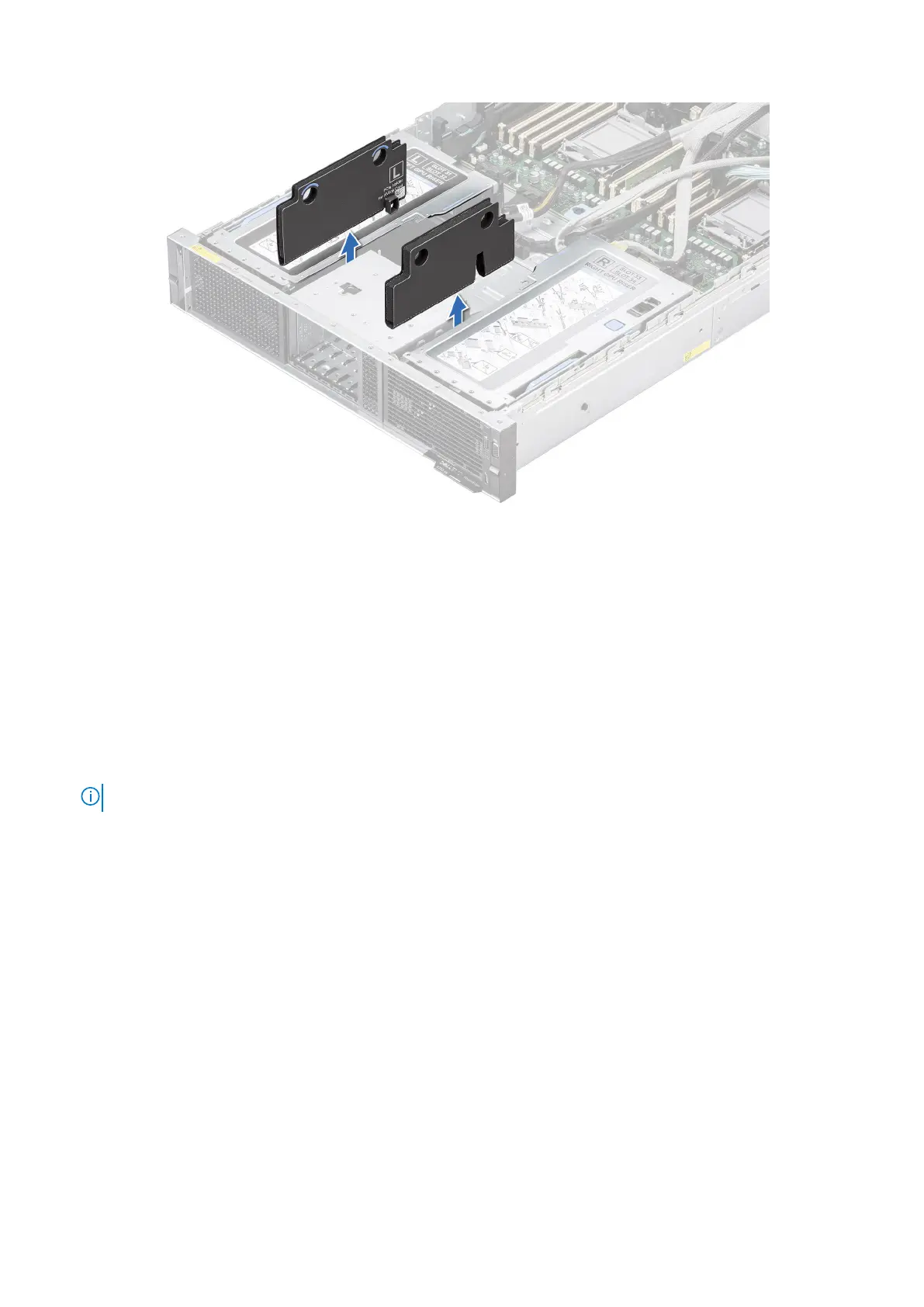

Figure 113. Removing the NVLink sponges
Next steps
1. Replace the NVLink sponges.
Installing the NVLink sponges
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the rear mounting front PERC module.
NOTE: Observe the cable routing before disconnecting the cables.
4. NVLink sponges are required only for GPUs with NVLink bridges.
Steps
Holding the edges, align the NVLink sponge and insert between the drive cage and GPU riser module.
Installing and removing system components
113
