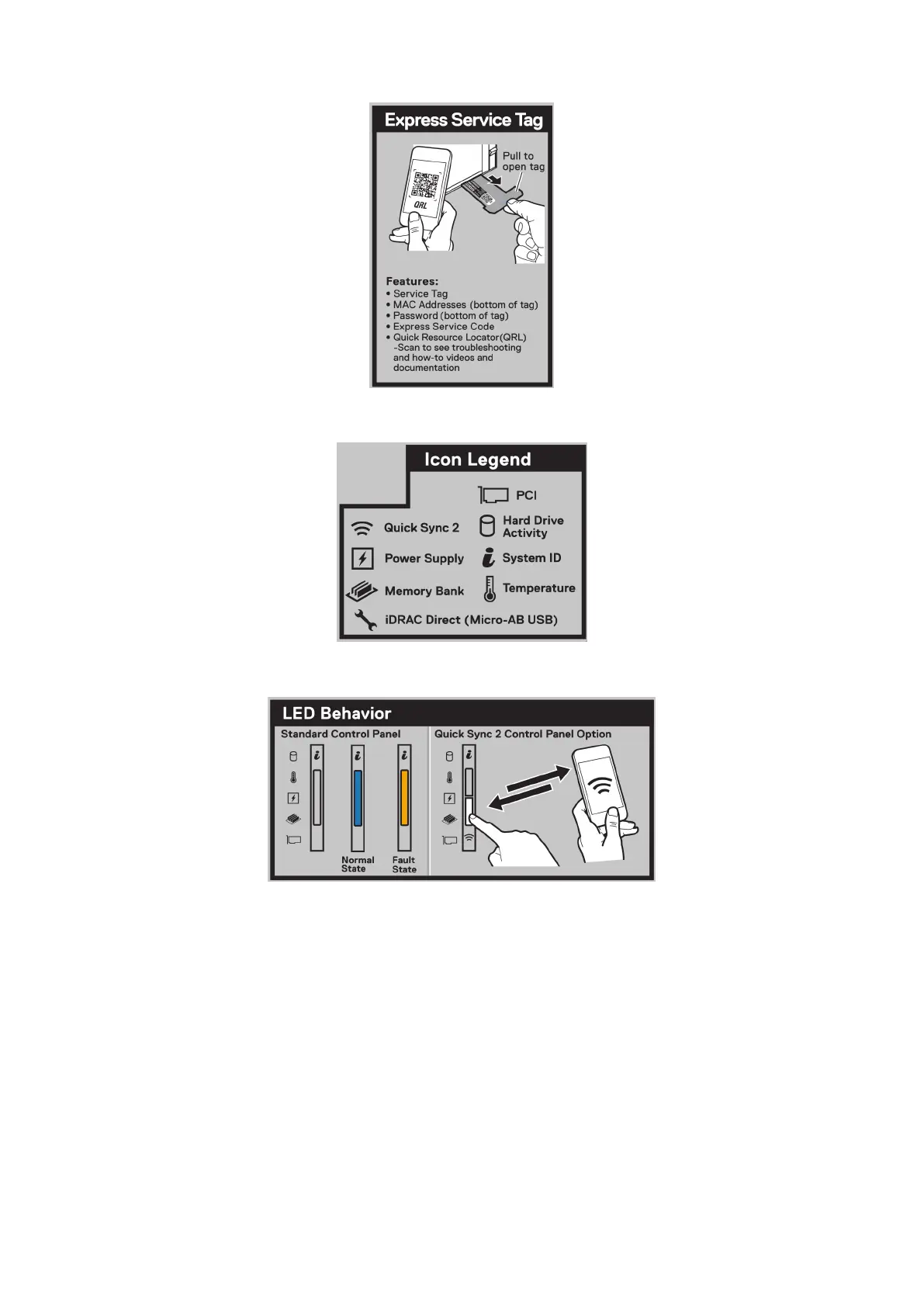

Figure 18. Express service tag
Figure 19. Icon legend
Figure 20. LED behavior
Rail sizing and rack compatibility matrix
For specific information about the rail solutions compatible with your system, see the Dell EMC Enterprise Systems
Rail Sizing and Rack Compatibility Matrix available at https://i.dell.com/sites/csdocuments/Business_solutions_engineering-
Docs_Documents/en/rail-rack-matrix.pdf.
The document provides the information that is listed below:
● Specific details about rail types and their functionalities.
● Rail adjustability range for various types of rack mounting flanges.
● Rail depth with and without cable management accessories.
● Types of racks supported for various types of rack mounting flanges.
