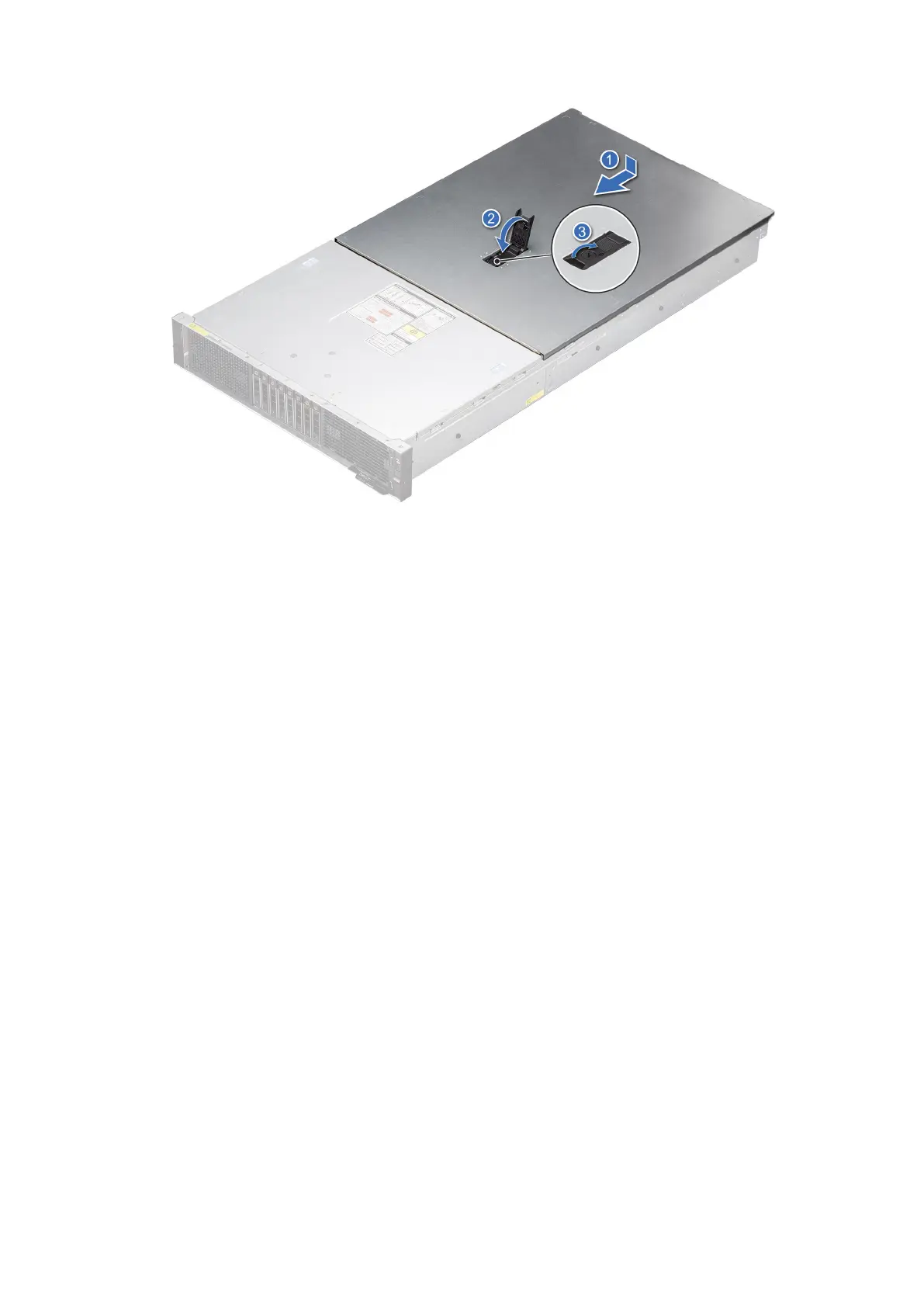

Figure 24. Installing the system cover
Next steps
1. Follow the procedure listed in After working inside your system.
Drive backplane cover
Removing the drive backplane cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Press the blue tab and slide the drive backplane cover.
2. Lift the drive backplane cover from the system.
32
Installing and removing system components
