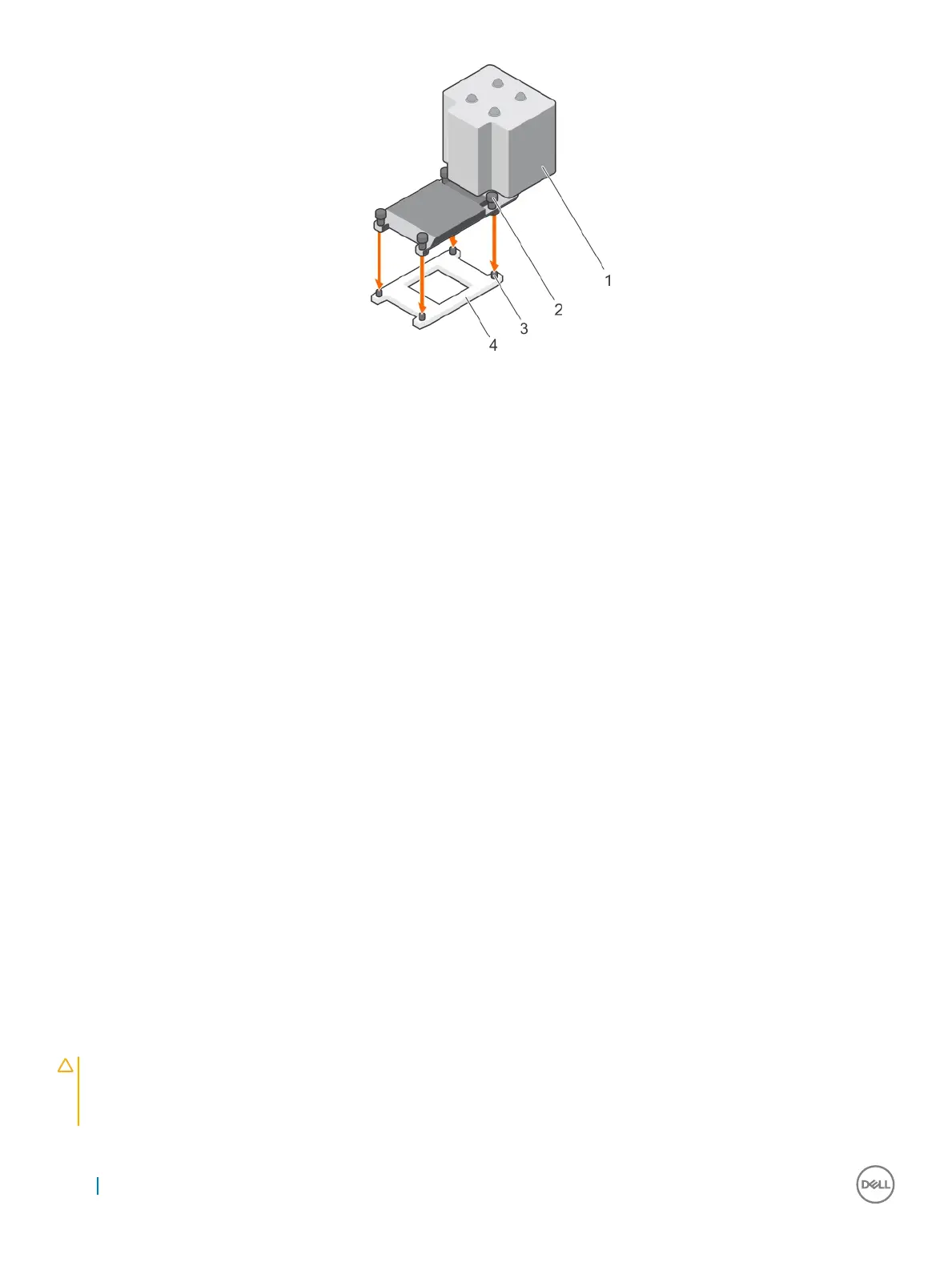

Figure 75. Installing the heat sink
1 heat sink 2 retention screw (4)
3 retention screw slot (4) 4 processor shield
Next steps
1 Install the following:
a Fan tray
b Cable management tray
c Memory riser and fan cage
d Memory riser
e Cooling fans
2 Install the cooling shroud.
3 Follow the procedure listed in the After working inside your system section.
4 While booting, press F2 to enter System Setup and verify that the processor information matches the new system conguration.
5 Run the system diagnostics to verify that the new processor operates correctly.
Related links
Safety instructions
Before working inside your system
Installing a processor
Installing the fan tray
Installing the cable management tray
Installing the memory riser and fan cage
Installing a memory riser
Installing a cooling fan
After working inside your system
Removing a processor and heat sink blank
Prerequisites
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that came with the product.
