Dell PowerEdge R930 User Manual

Steps
1 Reconnect the cable to the back of the optical drive.
2 Align the optical drive with the optical drive slot in the front of the chassis.
3 Slide the optical drive into the optical drive slot until the optical drive connector engages with SATA connector on the system board.

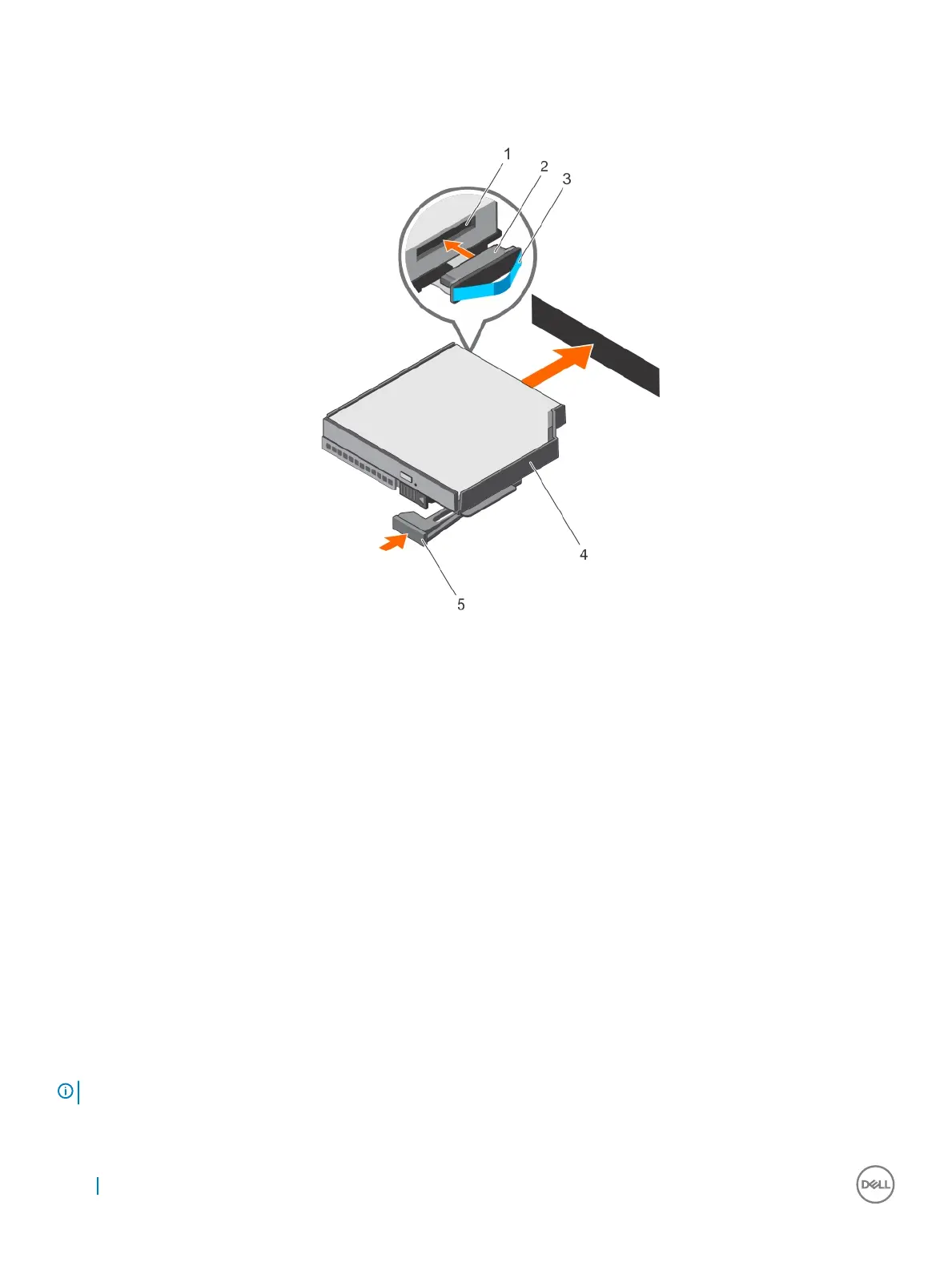

Figure 43. Installing the optical drive
1
optical drive connector 2 cable
3 pull tab 4 optical drive carrier
5 ejector handle
Next step
1 Follow the procedure listed in the After working inside your system section.
Related links
Safety instructions
Before working inside your system
After working inside your system
Internal USB memory key (optional)
An optional USB memory key installed inside your system can be used as a boot device, security key, or mass storage device.
To boot from the USB memory key, congure the USB memory key with a boot image and then specify the USB memory key in the boot
sequence in System Setup.
The internal USB port must be enabled in Internal USB Port option in the Integrated Devices screen of System Setup.
NOTE
: To locate the internal USB port (INT_USB) on the system board, see the System board jumpers and connectors section.
100 Installing and removing system components

Dell PowerEdge R930 Specifications

General

Tcase	70 °C
Bus type	QPI
Stepping	E0
FSB Parity	No
Scalability	S4S
Processor code	SR224
Processor cache	25 MB
Processor cores	10
Processor model	E7-4820V3
System bus rate	6.4 GT/s
Processor series	Intel Xeon E7-4800 v3
Processor socket	LGA 2011 (Socket R)
Processor threads	20
Processor codename	Haswell
Motherboard chipset	Intel® C602J
Number of QPI links	3
Processor frequency	1.9 GHz
Processor cache type	Last Level Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	115 W
Compatible processor series	Intel® Xeon®
Number of processors installed	2
Maximum number of SMP processors	4
Maximum number of PCI Express lanes	32
Memory types supported by processor	DDR4-SDRAM, DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1333, 1600, 1866, 1066 MHz
Memory bandwidth supported by processor (max)	102 GB/s
Maximum internal memory supported by processor	1536 GB
Intelligent Platform Management Interface (IPMI) support	Yes
HDD size	2.5 \
HDD speed	10000 RPM
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	1
Supported storage drive interfaces	Serial ATA III
Memory slots	96
Internal memory	64 GB
Memory clock speed	1866 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	3072 GB
Graphics card	G200
Graphics card family	Matrox
LAN controller	Broadcom 5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Performance management	iDRAC8 Enterprise
Compatible operating systems	Microsoft Windows Server 2008 R2\\r Microsoft Windows Server 2012\\r Microsoft Windows Server 2012 R2\\r Novell SUSE Linux Enterprise Server\\r Red Hat Enterprise Linux\\r VMware ESX
Chassis type	Rack (4U)
Power supply	1100 W
Processor ARK ID	84677
Intel Secure Key Technology version	1.00
Intel Instruction Replay Technology version	0.00
PCI Express slots version	3.0
On-board graphics card model	Not available

Weight and Dimensions

Depth	802.3 mm
Width	482.4 mm
Height	172.6 mm
Weight	23800 g
