Dell PP29L - Wireless Mini-Cards; Removing Mini-Card

Adding and Replacing Parts 149
FILE LOCATION: C:\Projects\Spears\SpearsHTML\parts.fm
DELL CONFIDENTIAL – PRELIMINARY 7/18/07 - FOR PROOF ONLY
• Ultra-Wideband (UWB) card
• Mobile Broadband or Wireless Wide Area Network (WWAN)
Removing Mini-Card
1 Follow the procedures in "Before You Begin" on page 135.
2 Turn the computer over.

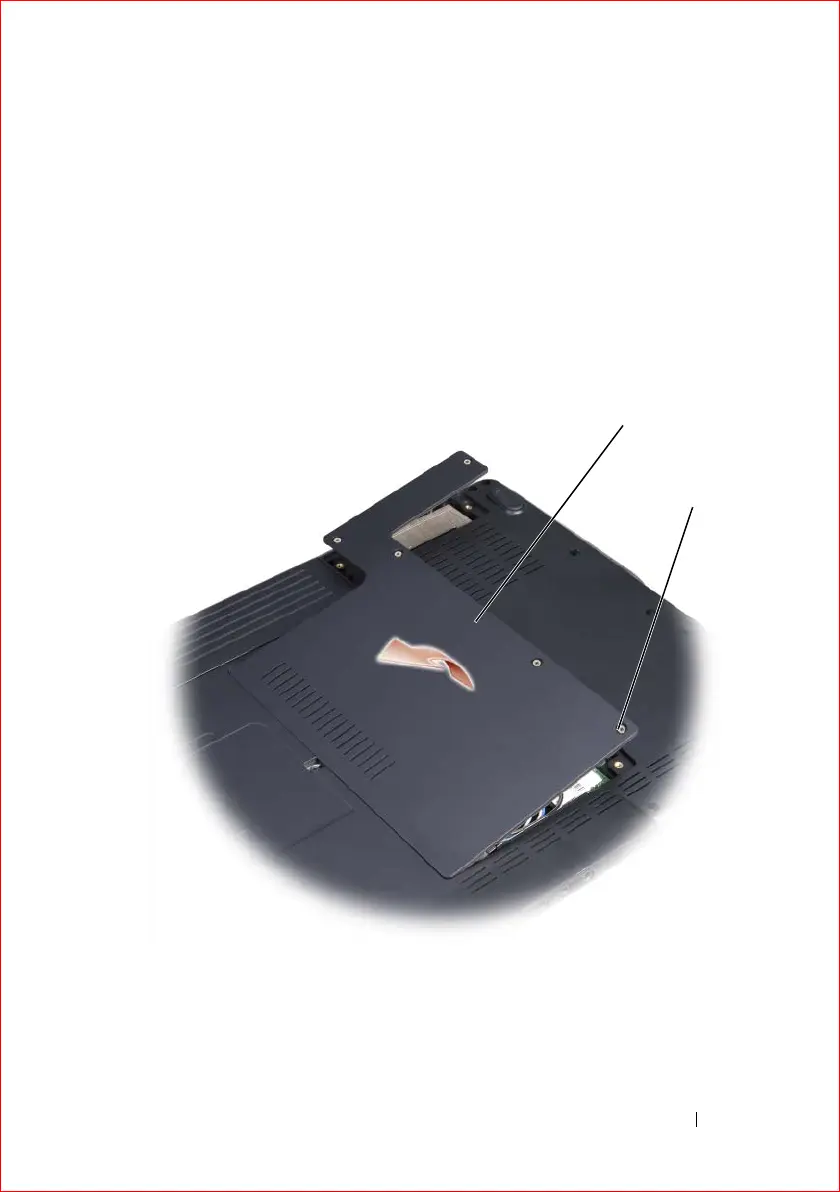

3 Loosen the five captive screws securing the cover and remove the cover.
1 cover 2 captive screws (5)
2
1
