Dell Precision 390 User Manual

l Three PCI card slots
l One PCI Express x16 card slot
l One PCI Express x8 card slot (wired as x4)
l One PCI Express x1 card slot

PCI Cards
If you are installing or replacing a PCI card, see Installing a PCI Card. If you are removing but not replacing a PCI card, see Removing a PCI Card.
If you are replacing a card, remove the current driver for the card from the operating system.

Installing a PCI Card

1. Follow the procedures in Before You Begin.

2. Remove the computer cover (see Removing the Computer Cover).


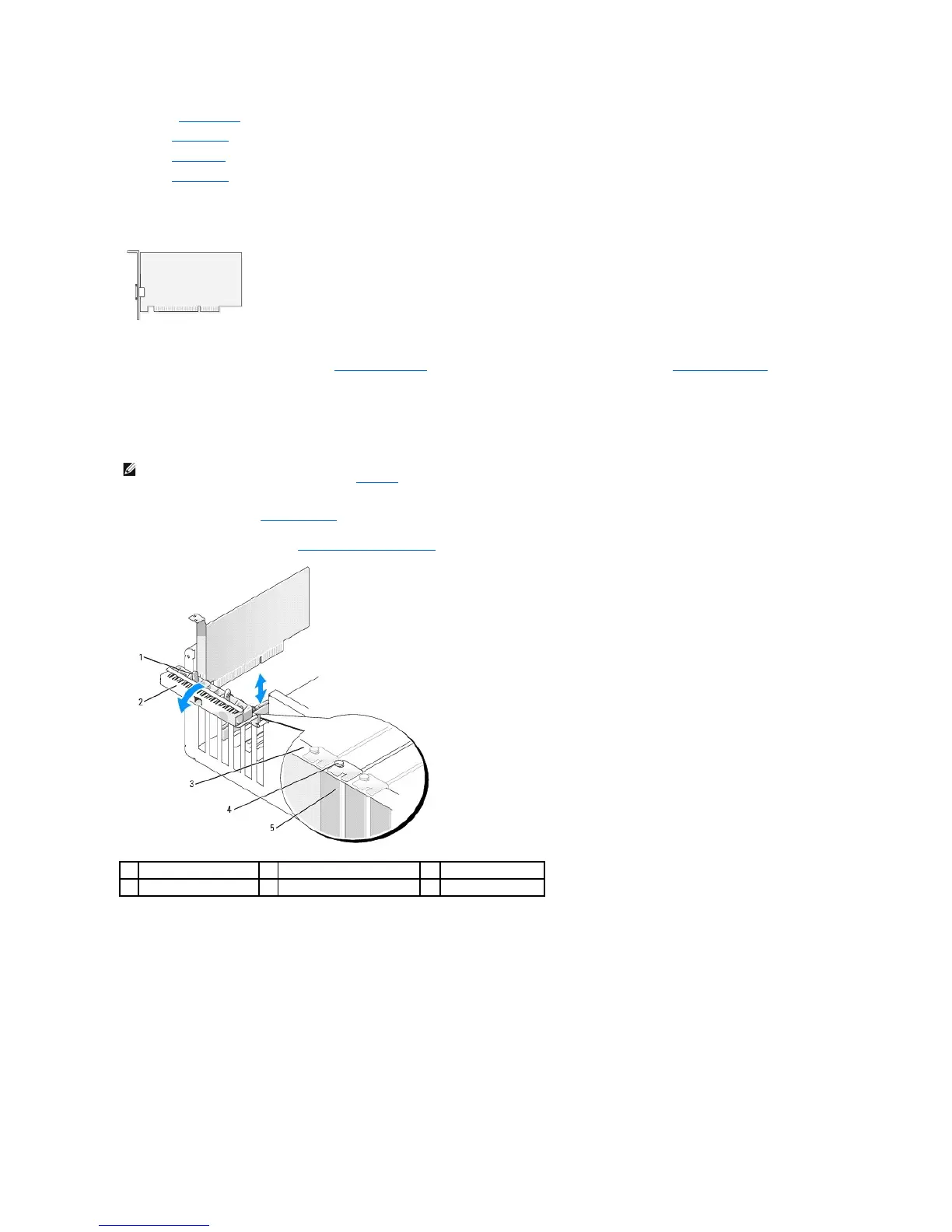

3. Gently push the release tab on the card retention door from the inside to pivot the door open. Because the door is captive, it will remain in the open
position.
NOTE: Dell offers a customer kit for Audigy II and IEEE 1394 PCI cards that includes a front-mounted IEEE 1394 connector. For more information about
connecting the card cable to the I/O panel, see I/O Panel.
1
release tab
2
card retention door
3
alignment bar
4
alignment guide
5
filler bracket



Dell Precision 390 Specifications

General

Memory	Up to 8GB DDR2 SDRAM
Network	Integrated Gigabit Ethernet
Processor	Intel Core 2 Duo
Chipset	Intel 975X Express
Graphics	ATI FireGL
Storage	SATA 3.0Gb/s
Optical Drive	DVD-ROM, DVD+/-RW
Operating System	Microsoft Windows XP Professional, Red Hat Linux
Power Supply	375W
Expansion Slots	1 PCI Express x1 slot, 3 PCI slots
Ports	USB 2.0, serial, parallel
