Dell Storage Center SCv2020 User Manual

SCv2000/SCv2020 Storage System with Fibre Channel Front-End Connectivity
An SCv2000/SCv2020 storage system with Fibre Channel front-end connectivity may communicate with
the following components of a Storage Center system.

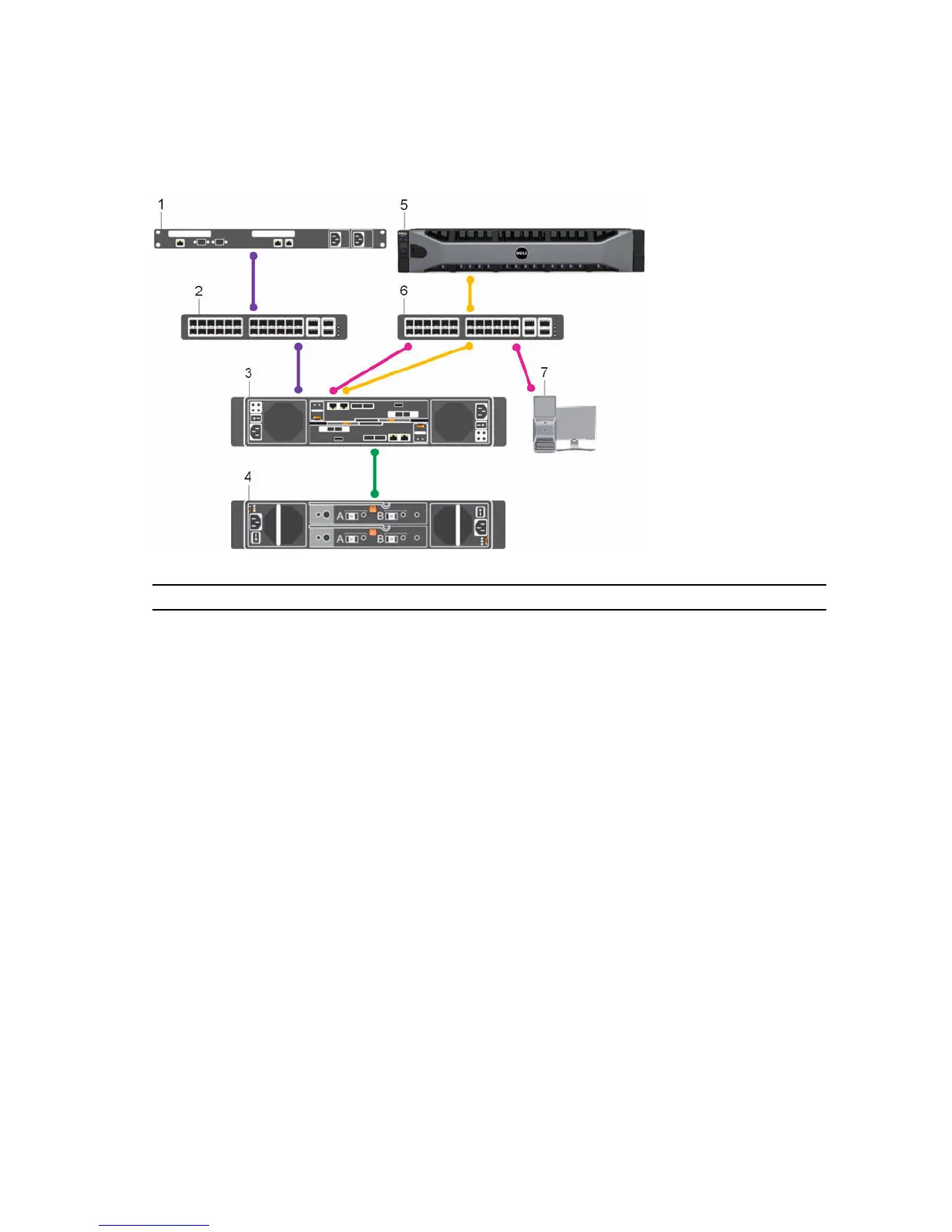

Figure 3. Storage System with Fibre Channel Front-End Connectivity
Item Description Speed Communication Type
1 Server with Fibre Channel host bus adapters
(HBAs)
8 Gbps or 16 Gbps Front End
2 Fibre Channel switch 8 Gbps or 16 Gbps Front End
3 SCv2000/SCv2020 storage system with FC
front-end connectivity
8 Gbps or 16 Gbps Front End
4 SC100/SC120 expansion enclosures 6 Gbps per channel Back End
5 Remote Storage Center connected via iSCSI
for replication
1 Gbps or 10 Gbps Front End
6 Ethernet switch 1 Gbps or 10 Gbps
(Management/
Replication)
Front End
7 Management network (computer connected
to the storage system through the Ethernet
switch)
Up to 1 Gbps System Administration
12
About the SCv2000/SCv2020 Storage System

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
