SCv2000/SCv2020 Storage System with SAS Front-End Connectivity

An SCv2000/SCv2020 storage system with SAS front-end connectivity may communicate with the

following components of a Storage Center system.

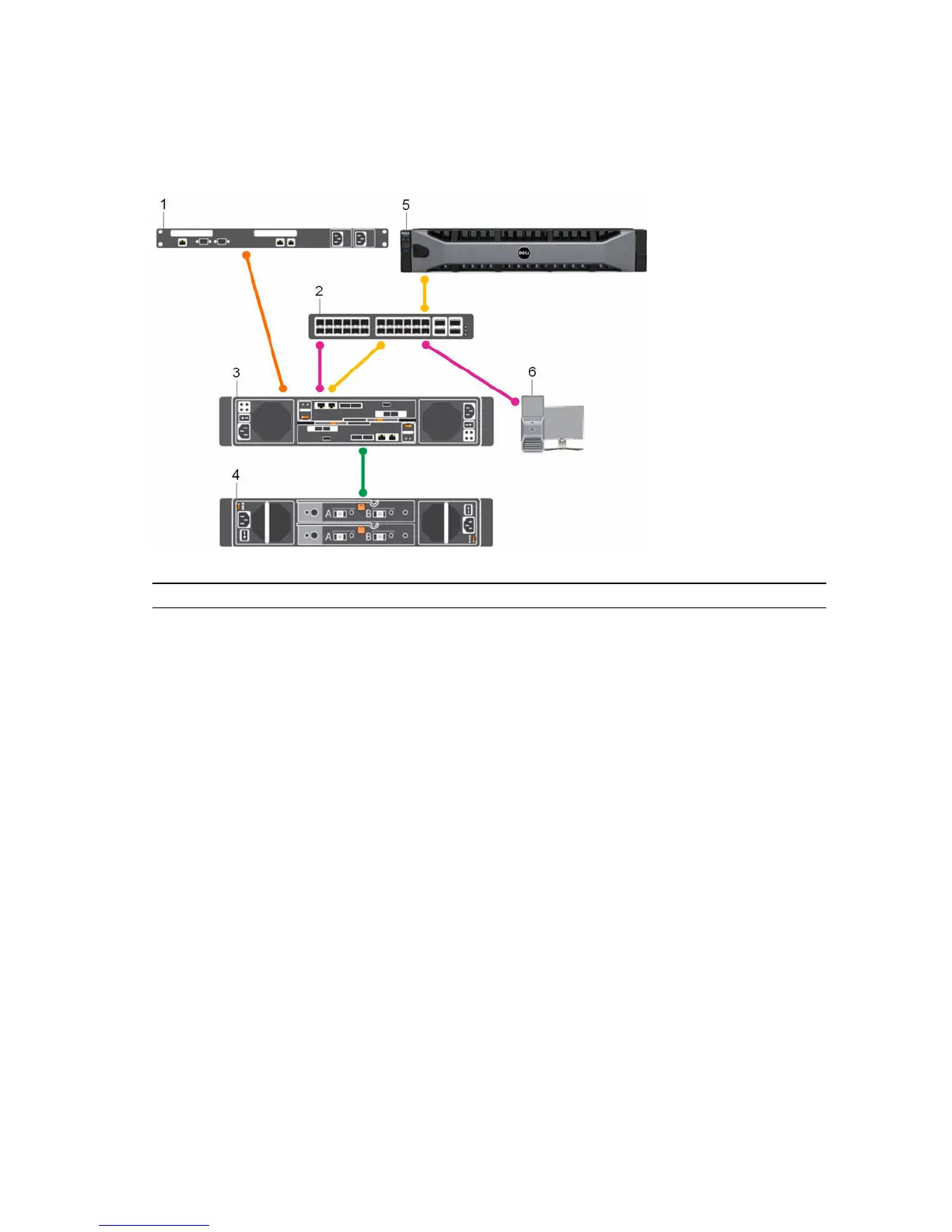

Figure 5. Storage System with SAS Front-End Connectivity

Item Description Speed Communication Type

1 Server with SAS host bus adapters (HBAs) 12 Gbps per channel Front End

2 Ethernet switch 1 Gbps or 10 Gbps

(Management/

Replication)

Front End

3 SCv2000/SCv2020 storage system with SAS

front-end connectivity

12 Gbps per channel Front End

4 SC100/SC120 expansion enclosures 6 Gbps per channel Back End

5 Remote Storage Center connected via iSCSI

for replication

1 Gbps or 10 Gbps Front End

6 Management network (computer connected

to the storage system through the Ethernet

switch)

Up to 1 Gbps System Administration

Back-End Connectivity

Back-end connectivity is strictly between the storage system and expansion enclosures, which hold the

physical drives that provide back-end expansion storage.

An SCv2000/SCv2020 storage system supports back-end connectivity to multiple expansion enclosures.

About the SCv2000/SCv2020 Storage System
