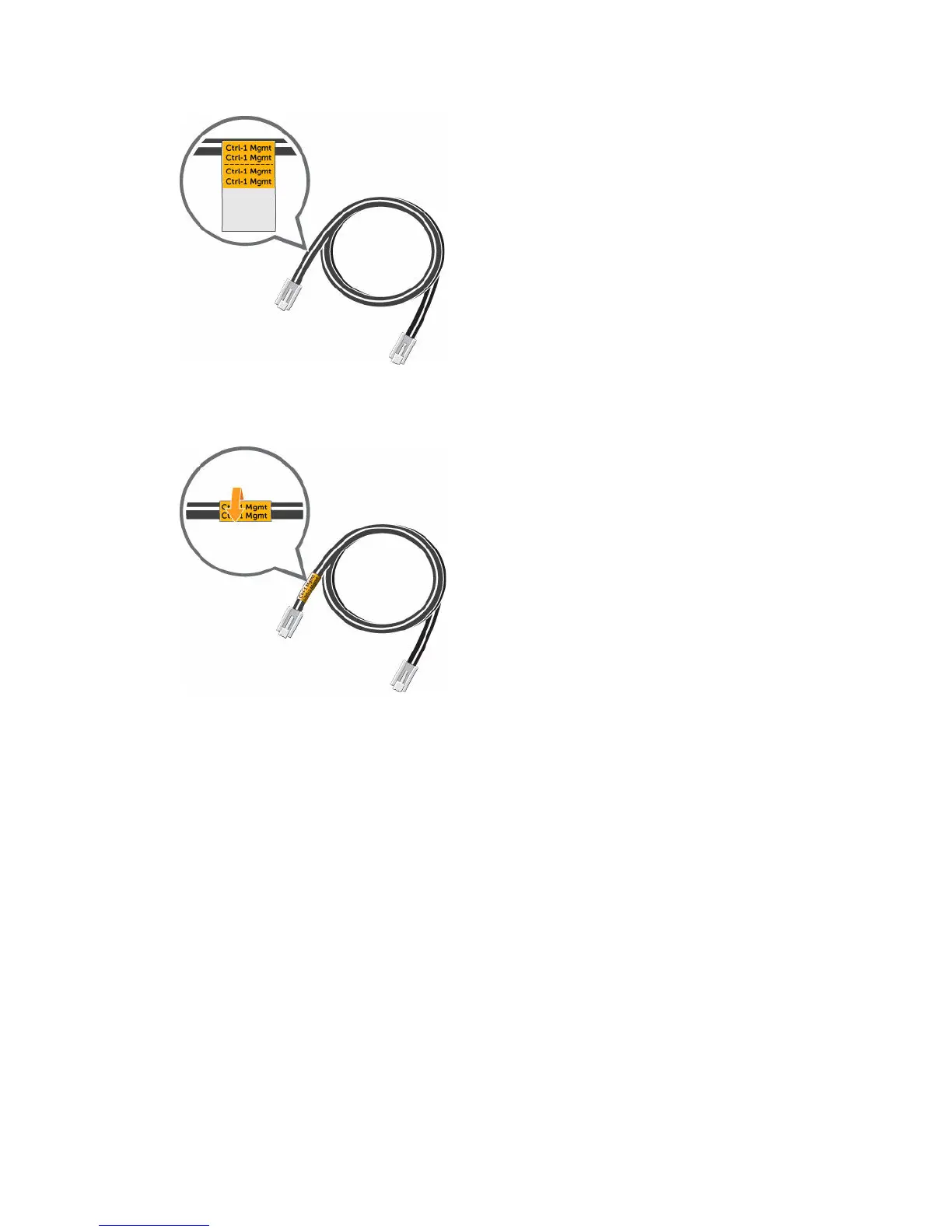

Figure 54. Attach Label to Cable
2. Wrap the label around the cable until it fully encircles the cable. The bottom of each label is clear so
that it does not obscure the text.
Figure 55. Wrap Label Around Cable
3. Apply a matching label to the other end of the cable.
Cabling the Embedded Ports for iSCSI Replication
If the Storage Center is licensed for replication, the replication port can be connected to an Ethernet
switch and used for iSCSI replication. If the
Storage Center is licensed for replication and the Flex Port
license is installed, the management port and replication port can both be connected to an Ethernet
switch and used for iSCSI replication.
Cabling the Replication Port for iSCSI Replication
If replication is licensed, the replication (REPL) port can be used to replicate data to another Storage
Center.
About this task
Connect the replication port of each storage controller to an Ethernet switch through which the Storage
Center can perform iSCSI replication.
64
Connect the Front End

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
