Dell Storage Center SCv2020 User Manual

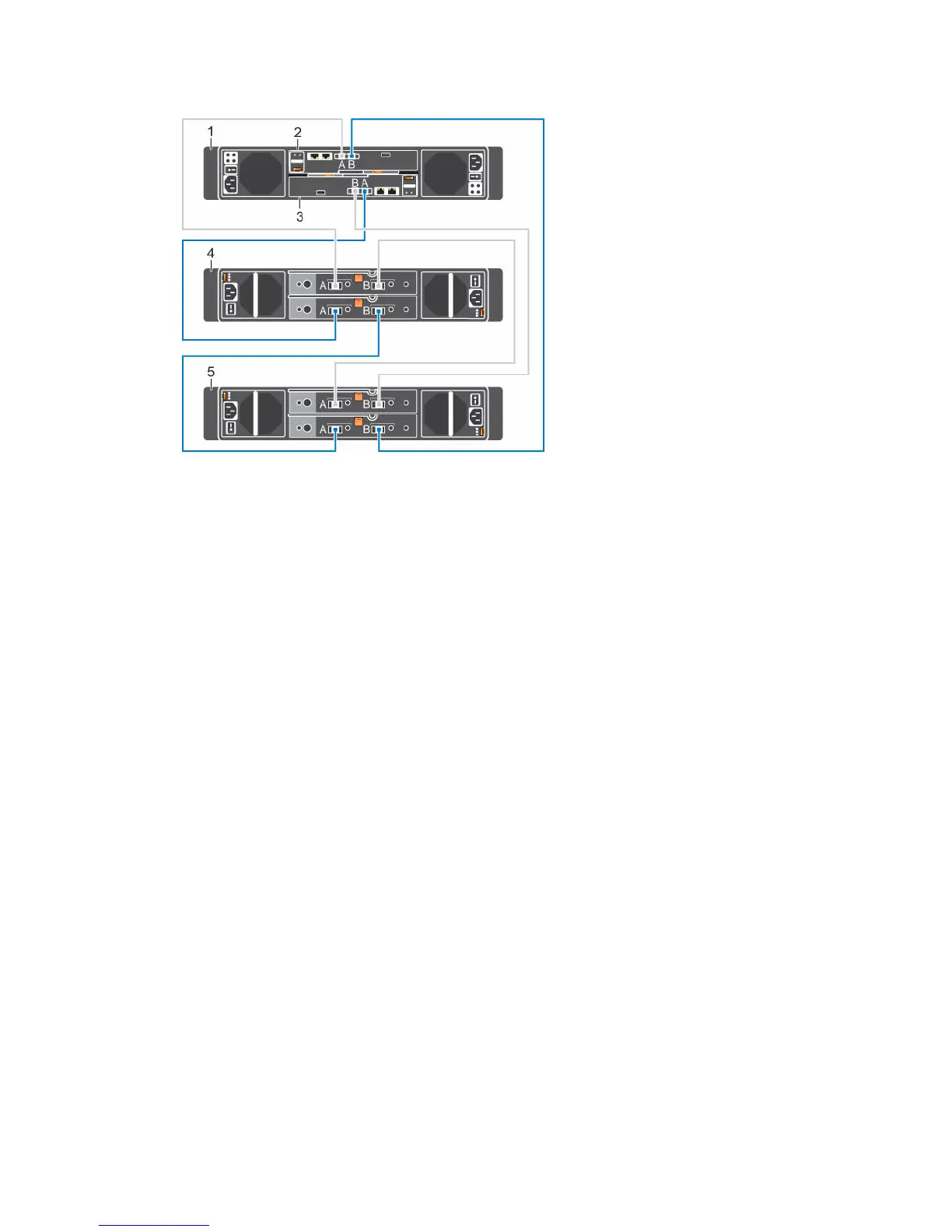

Figure 74. Connect the B-Side Cables to the Expansion Enclosures
1. Storage system
2. Storage controller 1
3. Storage controller 2 4. Expansion enclosure 1
5. Expansion enclosure 2
Label the Back-End Cables
Label the back-end cables that interconnect the storage controllers or label the back-end cables that
connect the
storage system to the expansion enclosures.
Prerequisites
Locate the cable labels provided with the expansion enclosures.
About this task
Apply cable labels to both ends of each SAS cable to indicate the chain number and side (A or B).
Steps
1. Starting with the top edge of the label, attach the label to the cable near the connector.
Adding or Removing an Expansion Enclosure
97

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
