Dell Storage Center SCv2020 User Manual

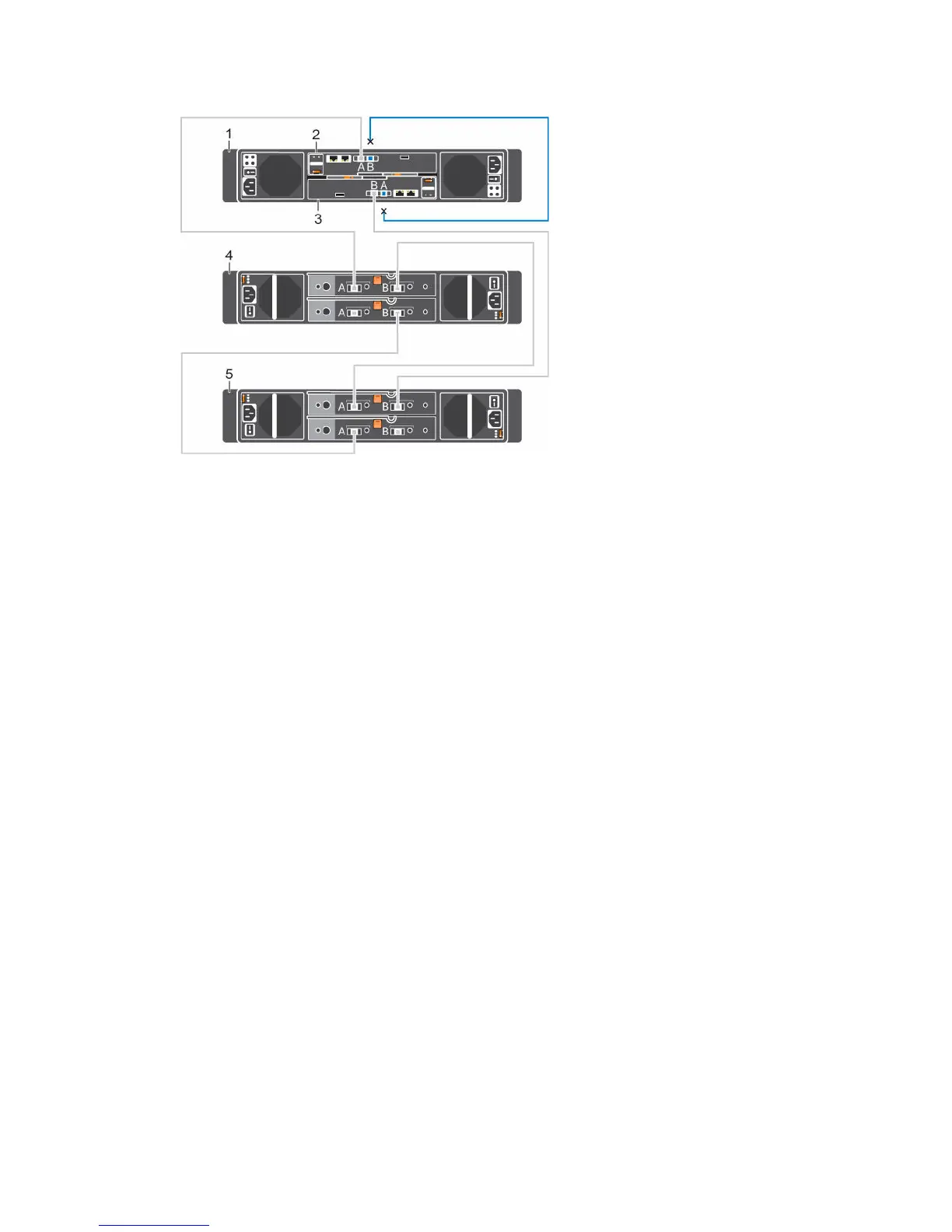

Figure 73. Remove the B-Side Cable from the Storage Controllers
1. Storage system
2. Storage controller 1
3. Storage controller 2 4. Expansion enclosure 1
5. Expansion enclosure 2
2. Cable the expansion enclosures to the B-side of the chain.
a. Connect a SAS cable from storage controller 1: port B to expansion enclosure 2: bottom EMM,
port B.
b. Connect a SAS cable from storage controller 2: port A to expansion enclosure 1: bottom EMM,
port A.
96
Adding or Removing an Expansion Enclosure

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
