Dell Storage Center SCv2020 User Manual

SCv2000/SCv2020 and One SC100/SC120 Expansion Enclosure

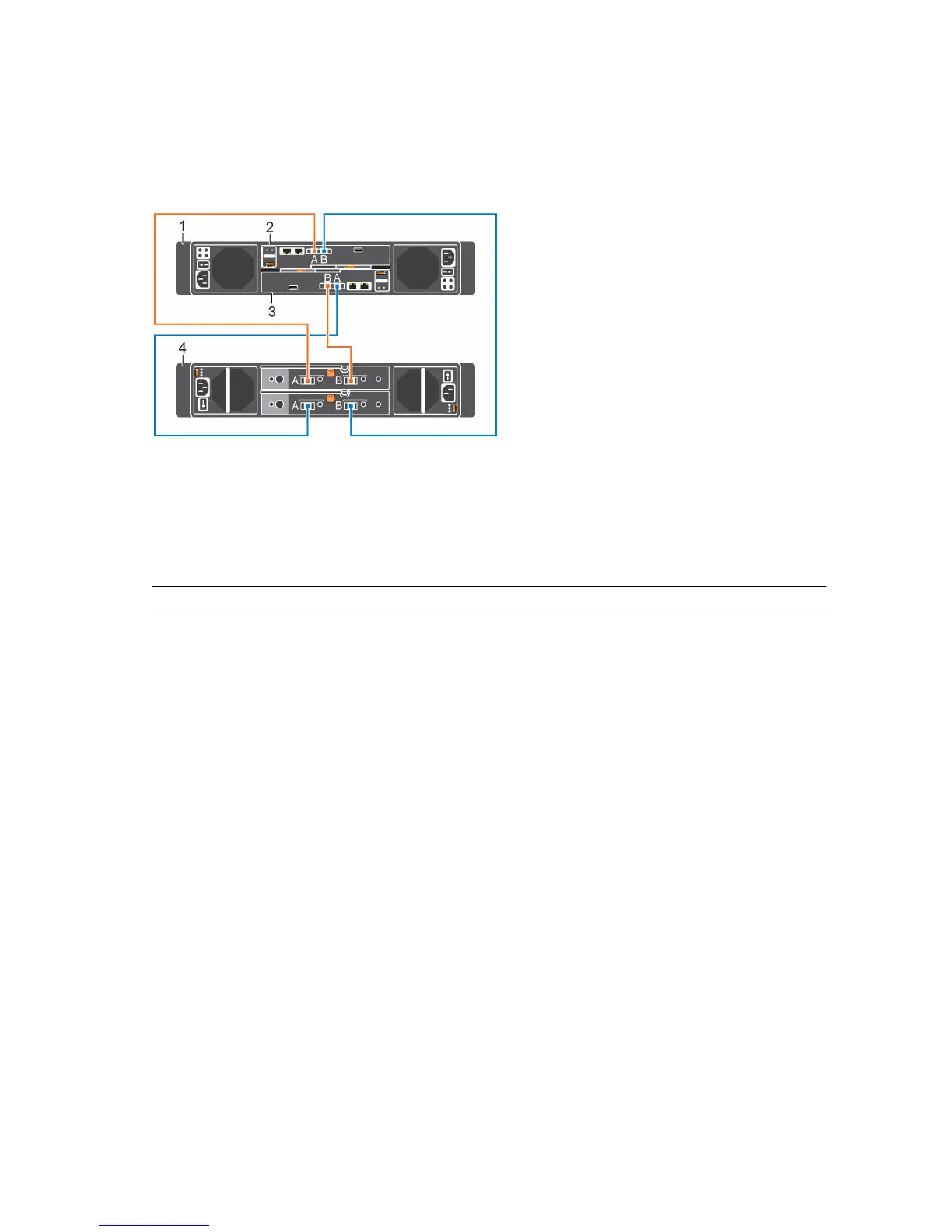

This figure shows an SCv2000/SCv2020 storage system cabled to one SC100/SC120 expansion
enclosure.
Figure 62. SCv2000/SCv2020 and One SC100/SC120 Expansion Enclosure
1. Storage system 2. Storage controller 1
3. Storage controller 2 4. Expansion enclosure
The following table describes the back-end SAS connections from an SCv2000/SCv2020 to one SC100/
SC120 expansion enclosure.
Table 4. SCv2000/SCv2020 Connected to One SC100/SC120 Expansion Enclosure
Path Connections
Chain 1: A Side (Orange)
1. Storage controller 1: port A to the expansion enclosure: top EMM, port A.
2. Expansion enclosure: top EMM, port B to storage controller 2: port B.
Chain 1: B Side (Blue)
1. Storage controller 2: port A to the expansion enclosure: bottom EMM,
port A.
2. Expansion enclosure: bottom EMM, port B to storage controller 1: port
B.
72
Back-End Cabling and Connecting Power

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
