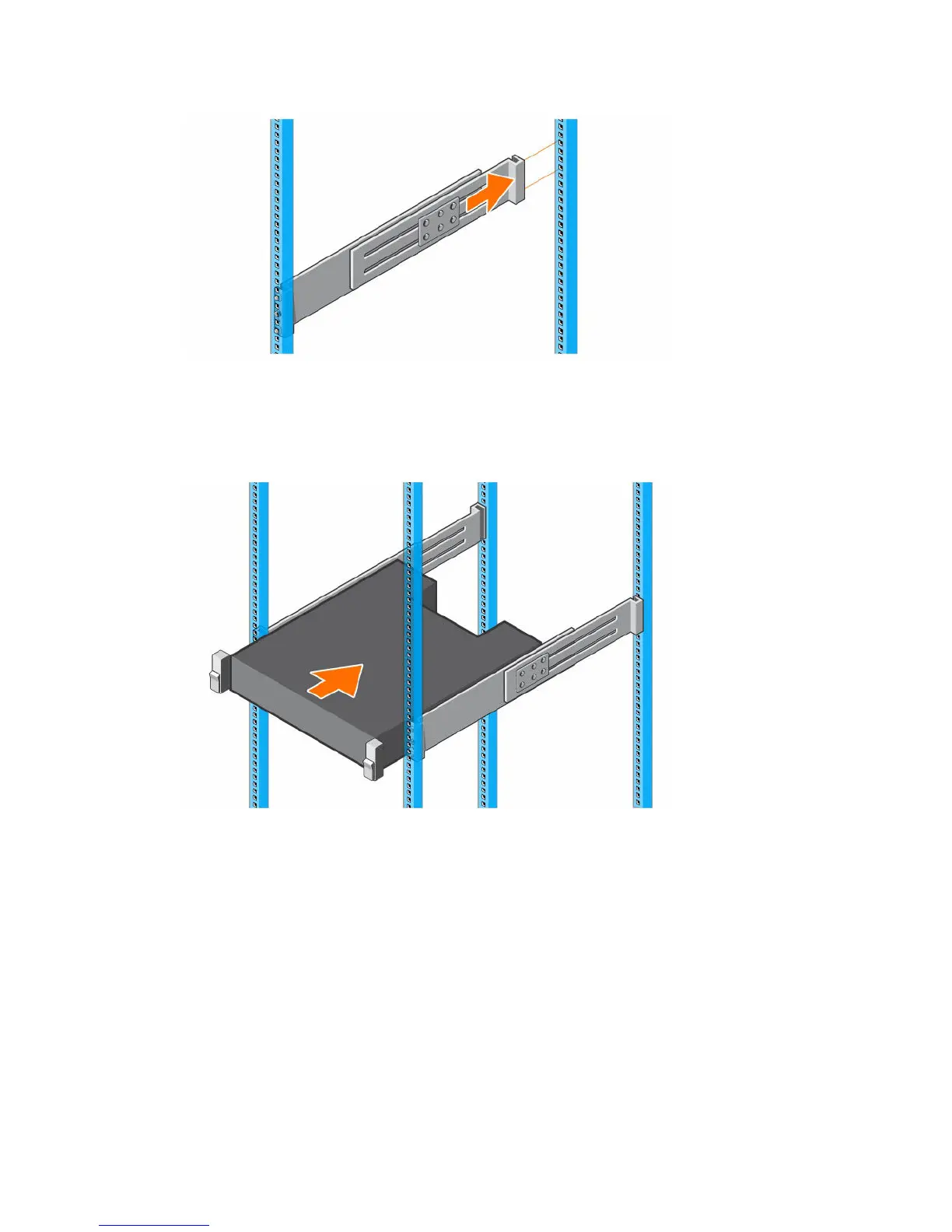

Figure 26. Extend the Rail
6. Insert a screw into the rack mounting screw hole at the back of the rack and tighten the screw to
secure the rail to the rack.
7. Repeat the previous steps for the second rail.
8. Slide the storage system chassis onto the rails.
Figure 27. Mount the SCv2000/SCv2020 Storage System Chassis
9. Secure the storage system chassis to the rack using the mounting screws within each chassis ear.
a. Lift the latch on each chassis ear to access the screws.
b. Tighten the screws to secure the chassis to the rack.
c. Close the latch on each chassis ear.
32
Install the Storage Center Hardware

Dell Storage Center SCv2020 Specifications

General

Form Factor	2U
RAID Support	RAID 0, 1, 5, 6, 10
Controllers	Dual Controllers
Host Connectivity	iSCSI, Fibre Channel
Product Type	Storage Array
Storage Type	SAN
Management Software	Dell Storage Manager
Processor	Intel Xeon
Maximum Raw Capacity	480 TB
Power Supply	Dual
Protocols	iSCSI, Fibre Channel
Max Storage	480 TB
Drive Type	SSD, HDD
Drive Types Supported	SSD
Operating Temperature	10° to 35°C (50° to 95°F)
Host Interface	8/16 Gb Fibre Channel, 10 Gb iSCSI
Host Port Speed	8/16 Gb Fibre Channel, 10 Gb iSCSI
