• If a physical port becomes unavailable, the storage system is accessed from another port on the

Ethernet switch.

• If a storage controller becomes unavailable, the virtual ports on the offline storage controller move to

the physical ports on the other storage controller.

NOTE: This configuration is vulnerable to switch unavailability, which results in a loss of connectivity

between the host servers and storage system.

Steps

1. Connect each server to the iSCSI network.

2. Connect fault domain 1 (shown in orange) to the iSCSI network.

• Storage controller 1: port 1 to the Ethernet switch

• Storage controller 2: port 1 to the Ethernet switch

3. Connect fault domain 2 (shown in blue) to the iSCSI network.

• Storage controller 1: port 2 to the Ethernet switch

• Storage controller 2: port 2 to the Ethernet switch

Example

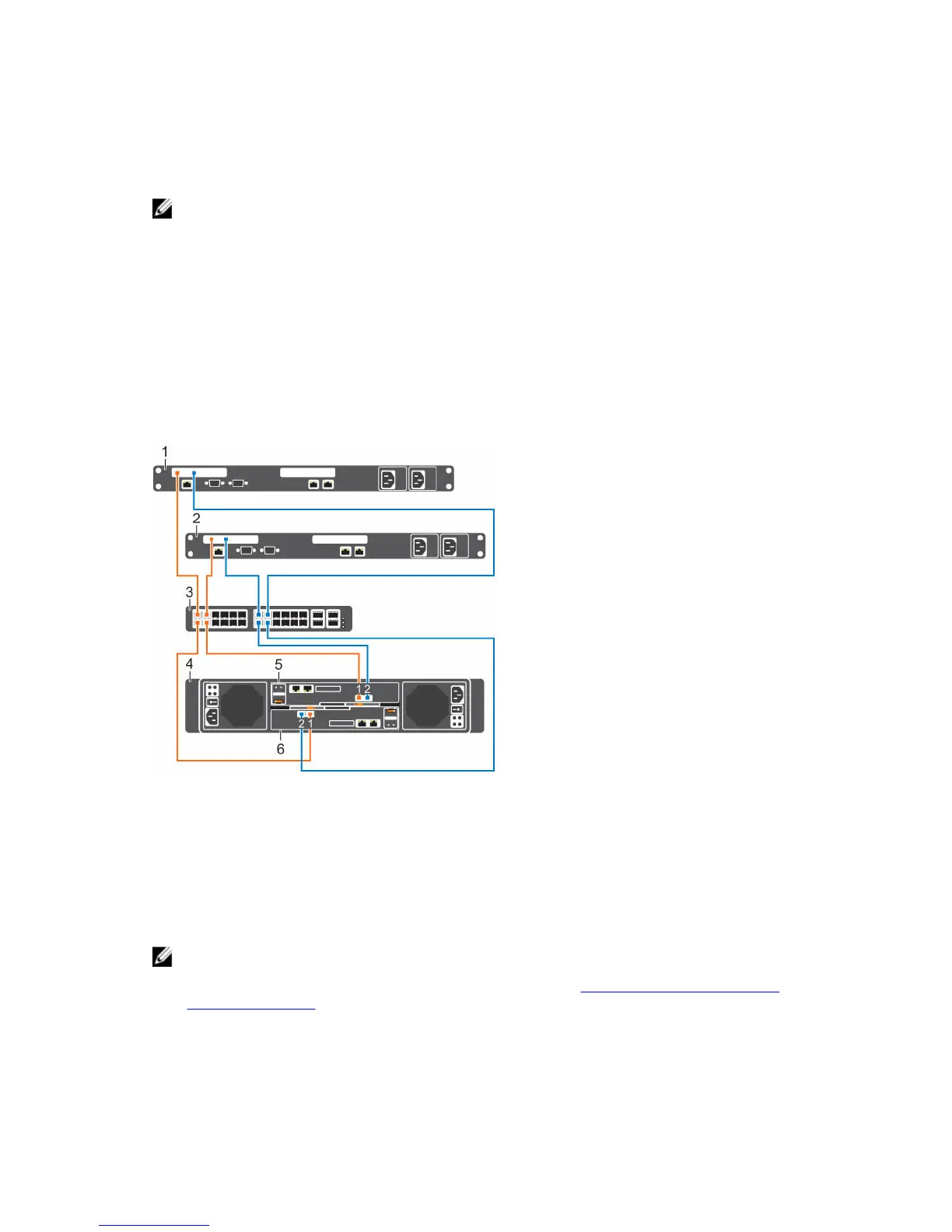

Figure 42. Storage System with Dual 10 GbE Storage Controllers and One Ethernet Switch

1. Server 1 2. Server 2

3. Ethernet switch (fault domain 1 and fault

domain 2)

4. Storage system

5. Storage controller 1 6. Storage controller 2

Next steps

Install or enable MPIO on the host servers.

NOTE: After the Storage Center configuration is complete, run the host access wizard to configure

host server access and apply MPIO best practices. For the latest best practices, see the Dell Storage

Center Best Practices document on the Dell TechCenter site (http://en.community.dell.com/

techcenter/storage/).

Connect the Front End
