Chassis frame
Removing the chassis frame
NOTE: These instructions are applicable only for systems with a non-touch screen display.
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. stand
b. back cover
c. cable cover
d. speaker cover
e. speaker
f. hard drive
g. optical drive
h. VESA mount bracket
i. system board shield
j. SSD card
k. WLAN card
l. memory
m. heat sink
n. system fan
o. processor
p. coin cell battery
q. power supply unit
r. system board

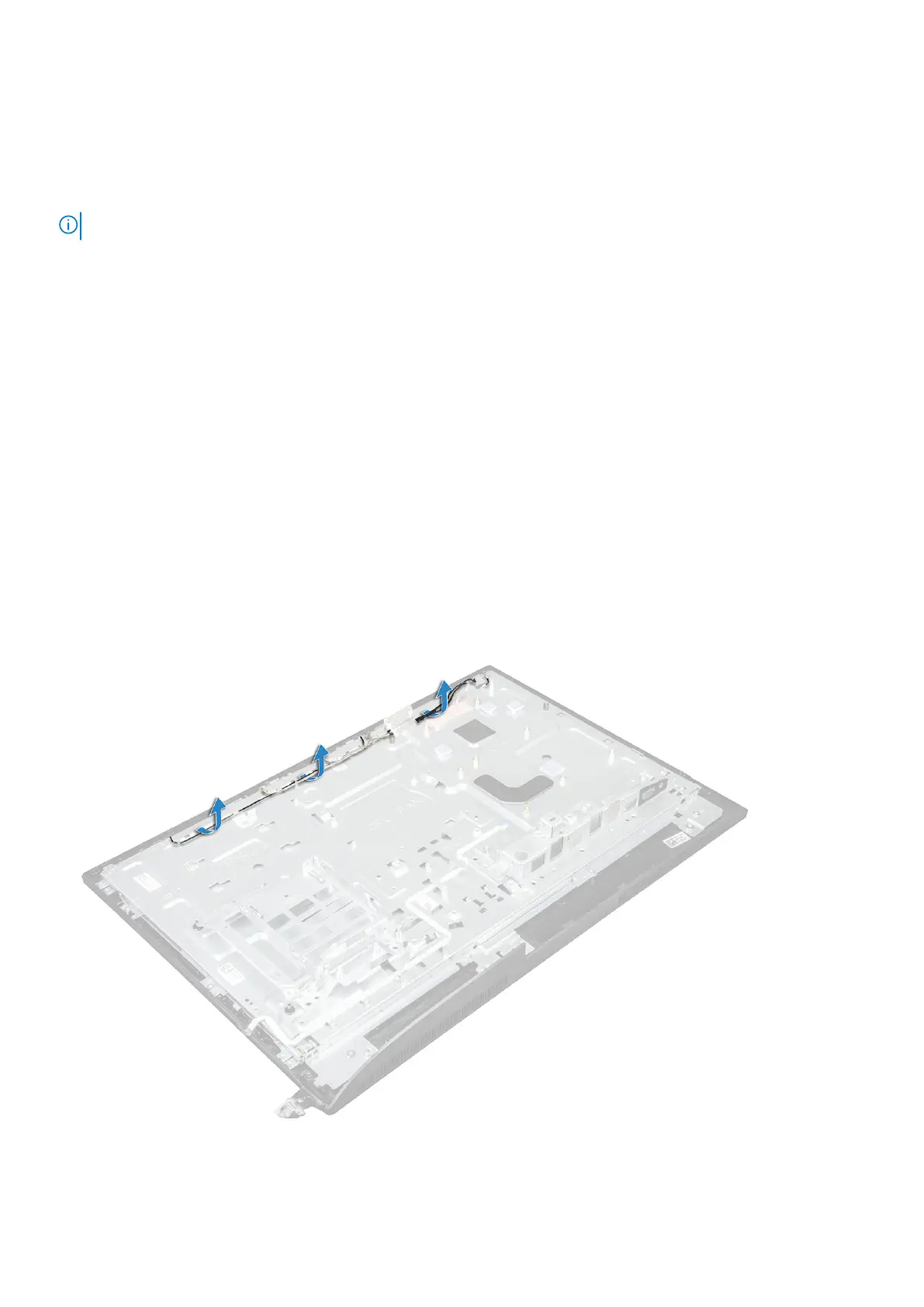

3. Unroute the cables though the retention clips.
4. To remove the chassis frame:
Disassembly and reassembly
29
