NOTE: There is a cable that is taped/glued down to the chassis frame. That cable runs down from the On-Screen
Display (OSD) and into a connector on the Display Bezel for the Power Button board below the OSD Button board.
Trying to lift the chassis frame without disconnecting this cable first could damage the connector.

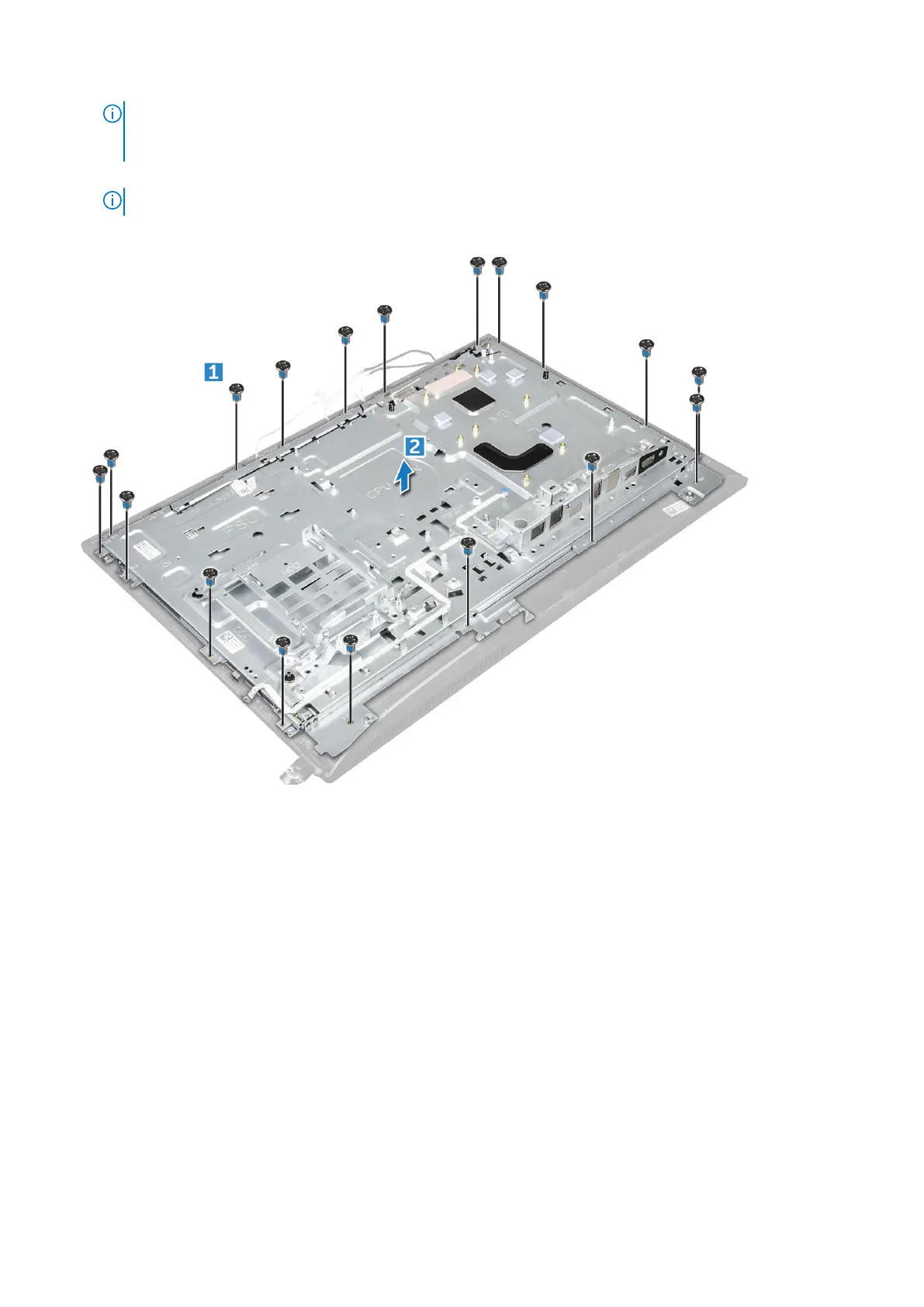

a. Remove the screws that secure the chassis frame to the computer. [1].
NOTE: Chassis frame screws have M3 and M2 stamped next to them.
b. Remove the cables from the chassis frame and lift the chassis frame away from the computer. [2].
Installing the chassis frame
1. Place the chassis frame on the computer.
2. Tighten the screws to secure the chassis frame to the computer.
3. Route the cables through the retention clips.
4. Install the:
a. system board
b. power supply unit
c. coin cell battery
d. system fan
e. processor
f. heat sink
g. memory
h. WLAN card
i. system board shield
j. SSD card
k. VESA mount bracket
l. optical drive
30
Disassembly and reassembly
