Delphi Multec 3.5 - Figure 3-2 - Multec 3.5 Fuel Injector Dimensions - Seal Ring Design. (for Exact Dimensions, Refer to Delphi Injector Outline Drawing); Figure 3-3 - Multec 3.5 Fuel Injector Dimensions - Cushion Seal; Face Seal Design; Dimensions, Refer to Delphi Injector Outline Drawing

Product Description Multec 3.5 Fuel Injector Application Manual
3-4 Delphi Energy and Chassis Systems
Revision: 11/05-1

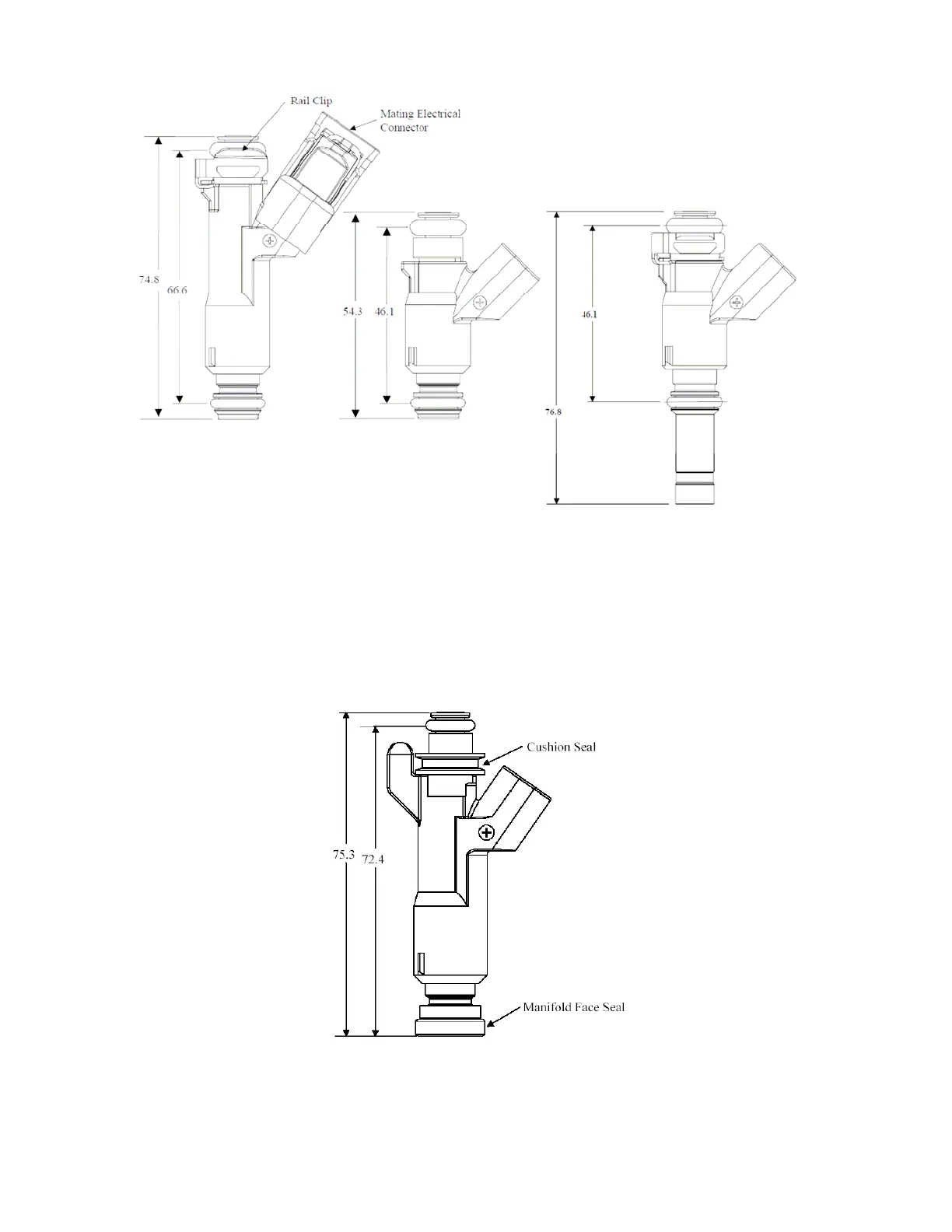

Figure 3-2 - Multec 3.5 Fuel Injector Dimensions – Seal ring design. (For exact
dimensions, refer to Delphi Injector Outline Drawing).
Figure 3-3 – Multec 3.5 Fuel Injector Dimensions – Cushion seal / Face seal design (For
exact dimensions, refer to Delphi Injector Outline Drawing.
Long Injector Mini Injector Extended Tip InjectorLong Injector Mini Injector Extended Tip Injector
