Delphi Multec 3.5 User Manual

Multec 3.5 Fuel Injector Application Manual System Interface
Delphi Energy and Chassis Systems
Revision: 11/05-1 4-13
USCAR 1.5 mm terminal connector design (SAE/USCAR-12 design guideline).
Component Part Number Description
Electrical
Connector &
Seal
15355226
USCAR mating connector
Cable Seal 12176807 Or equivalent
Terminal
12176636
TPA 15326238 Terminal Position Assurance feature
CPA 15355227 Connector Position Assurance feature
Or Alternate:
USCAR 1.5 mm terminal connector design (SAE/USCAR-12 design guideline).
Component Part Number Description
Electrical
Connector &
Seal
15419715
USCAR mating connector
Cable Seal 15366021 Or equivalent
Terminal
12191818 Terminal supplied with Nyosil lubricant
TPA 15423278 Terminal Position Assurance feature
CPA 15423276 Connector Position Assurance feature

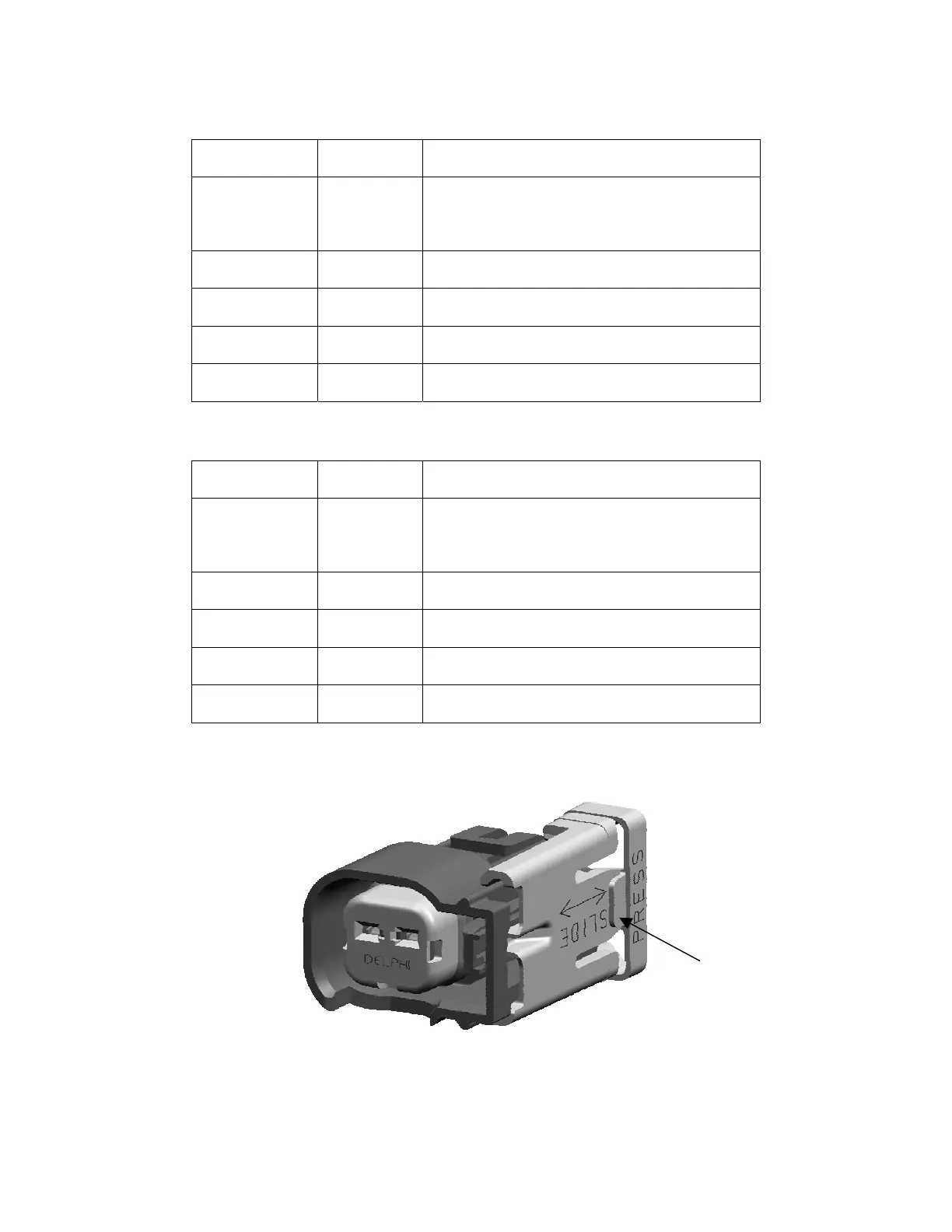

Figure 4-8 - USCAR Harness Connector
Connector Position
Assurance (CPA)
Feature
