Delphi Multec 3.5 - Figure 3-14 - High Pulse-Width Flow Effects. Static Occurs at 10 Msec (Rep. Rate = 10 Msec); Figure 3-15 - Low Pulse-Width Flow Effects. (Rep. Rate = 10 Msec)

Multec 3.5 Fuel Injector Application Manual Product Description
Delphi Energy and Chassis Systems
Revision: 11/05-1 3-29

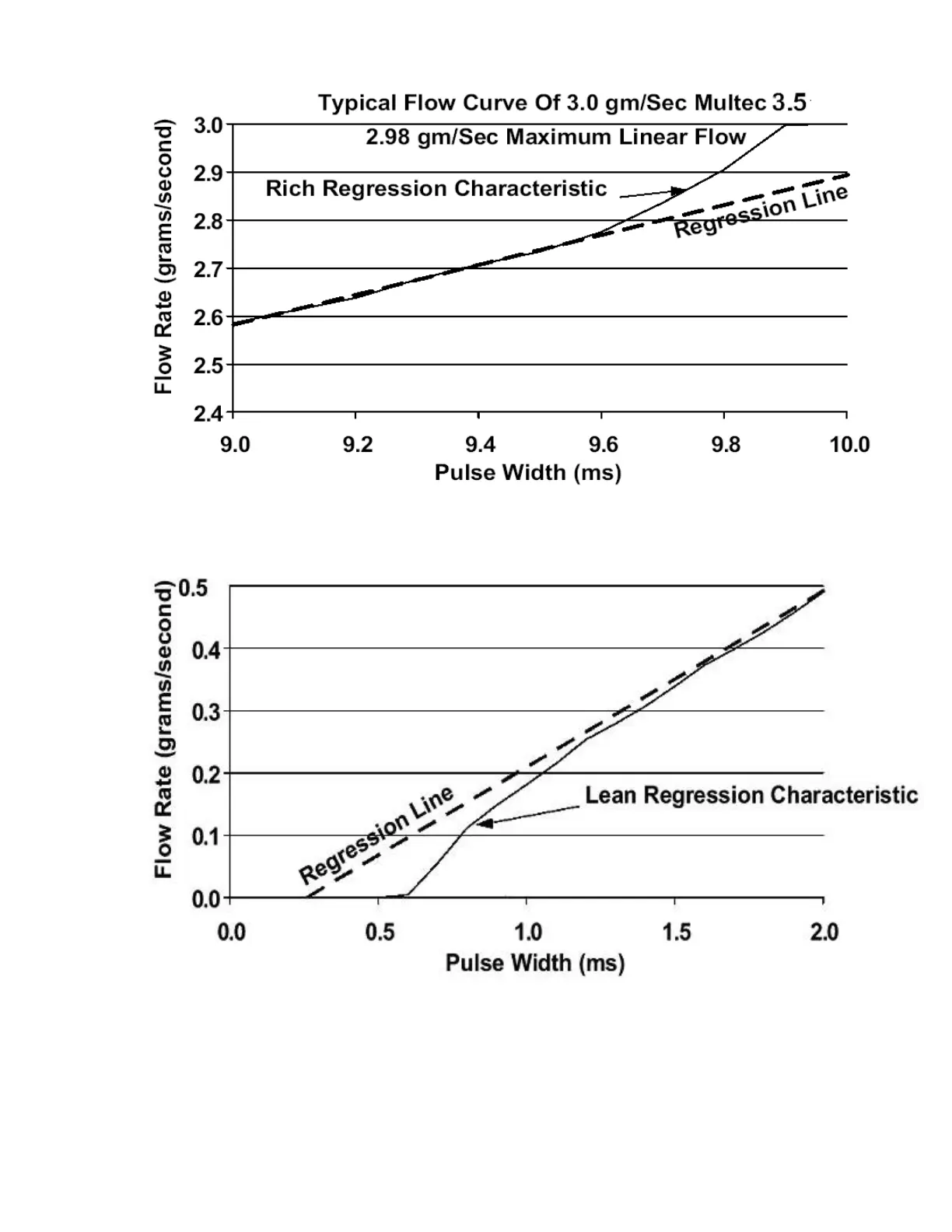

Figure 3-14 - High Pulse-Width Flow Effects. Static Occurs at 10 msec (rep. rate = 10 msec)
Figure 3-15 - Low Pulse-Width Flow Effects. (Rep. rate = 10msec)
