Delta AH Motion Series User Manual

AH Motion – Hardware Manual
3-80
_3

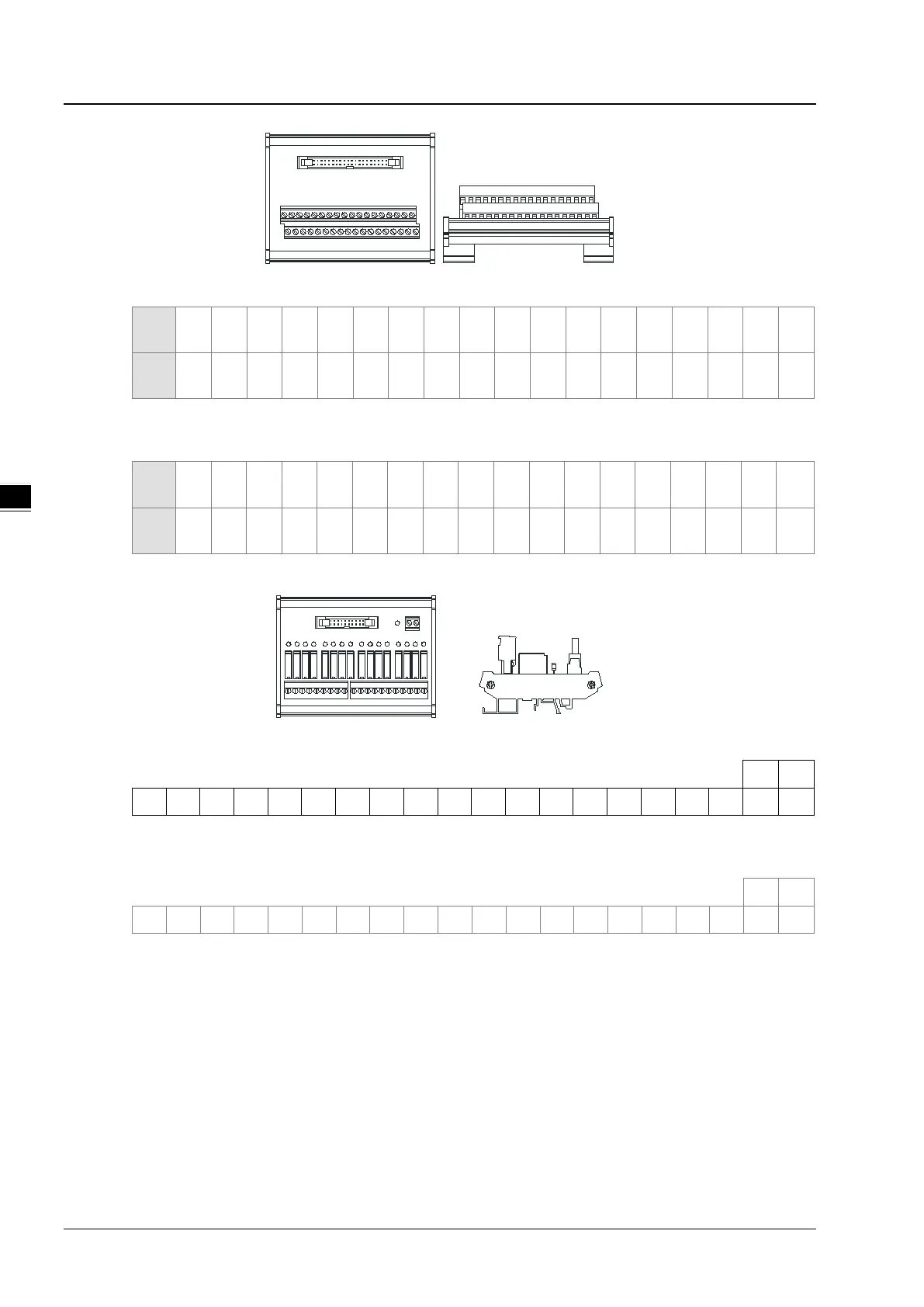

Terminals:
Upper
row
Y0 Y2 Y4 Y6 Y10 Y12 Y14 Y16 Y20 Y22 Y24 Y26 Y30 Y32 Y34 Y36 +24V +24V
Lower
row
Y1 Y3 Y5 Y7 Y11 Y13 Y15 Y17 Y21 Y23 Y25 Y27 Y31 Y33 Y35 Y37 GND GND
AH series terminals:
Upper
row
Y0.0 Y0.2 Y0.4 Y0.6 Y0.8 Y0.10
Y
0.12 Y0.14 Y1.0 Y1.2 Y1.4 Y1.6 Y1.8 Y1.10 Y1.12
Y
1.14 +24V +24V
Lower
row
Y0.1 Y0.3 Y0.5 Y0.7 Y0.9 Y0.11
Y
0.13 Y0.15 Y1.1 Y1.3 Y1.5 Y1.7 Y1.9 Y1.11 Y1.13
Y
1.15 GND GND
 UB-10-OR16B(DVPAETB-OR16B)
Terminals:
GND +24V
C0
Y0
Y1
Y2
Y3
C1
Y4
Y5
Y6
Y7
C2
Y10
Y11
Y12
Y13
C3
Y14
Y15
Y16
Y17
AH series terminals:
GND
+24V
C0
Y0.0
Y0.1
Y0.2
Y0.3
C1
Y0.4
Y0.5
Y0.6
Y0.7
C2
Y0.8
Y0.9
Y0.10
Y0.11
C3
Y0.12
Y0.13
Y0.14
Y0.15
