Chapter 2 System Configuration
2-11
2.3 Overall Network Configuration
- AHxxEMC
In addition to the AH Motion CPU network, e.g. EtherCAT, you can expand AH Motion system with additional networks

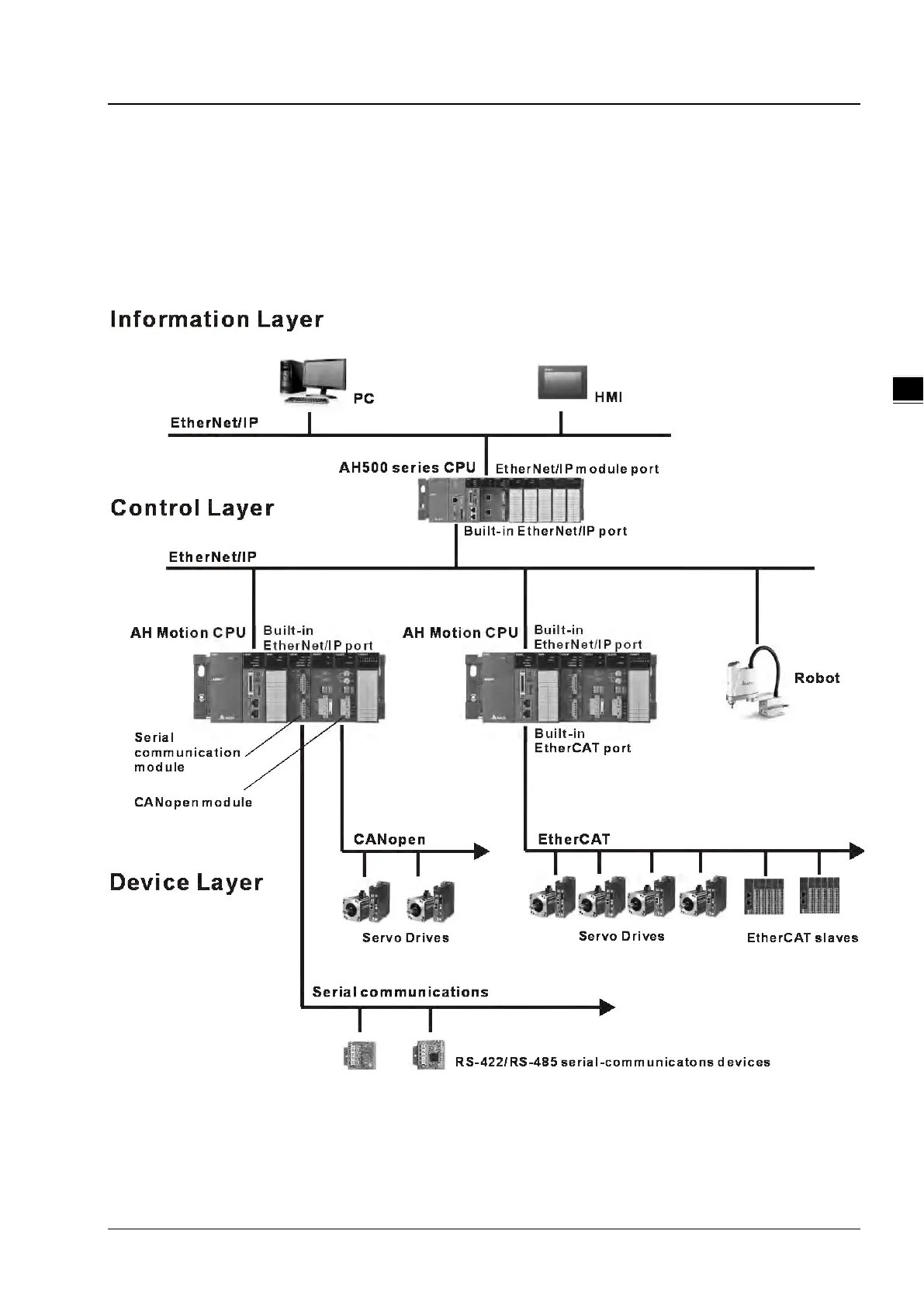

such as CANopen network and serial communication networks. The diagram below shows the overall network
configuration of different layers.
For operation procedures on connecting different communication networks, refer to ISPSoft User Manual.
