Delta AH Motion Series - Arrangement of Input;Output Terminals

AH Motion – Hardware Manual
3-46
_3
3
4
2
1

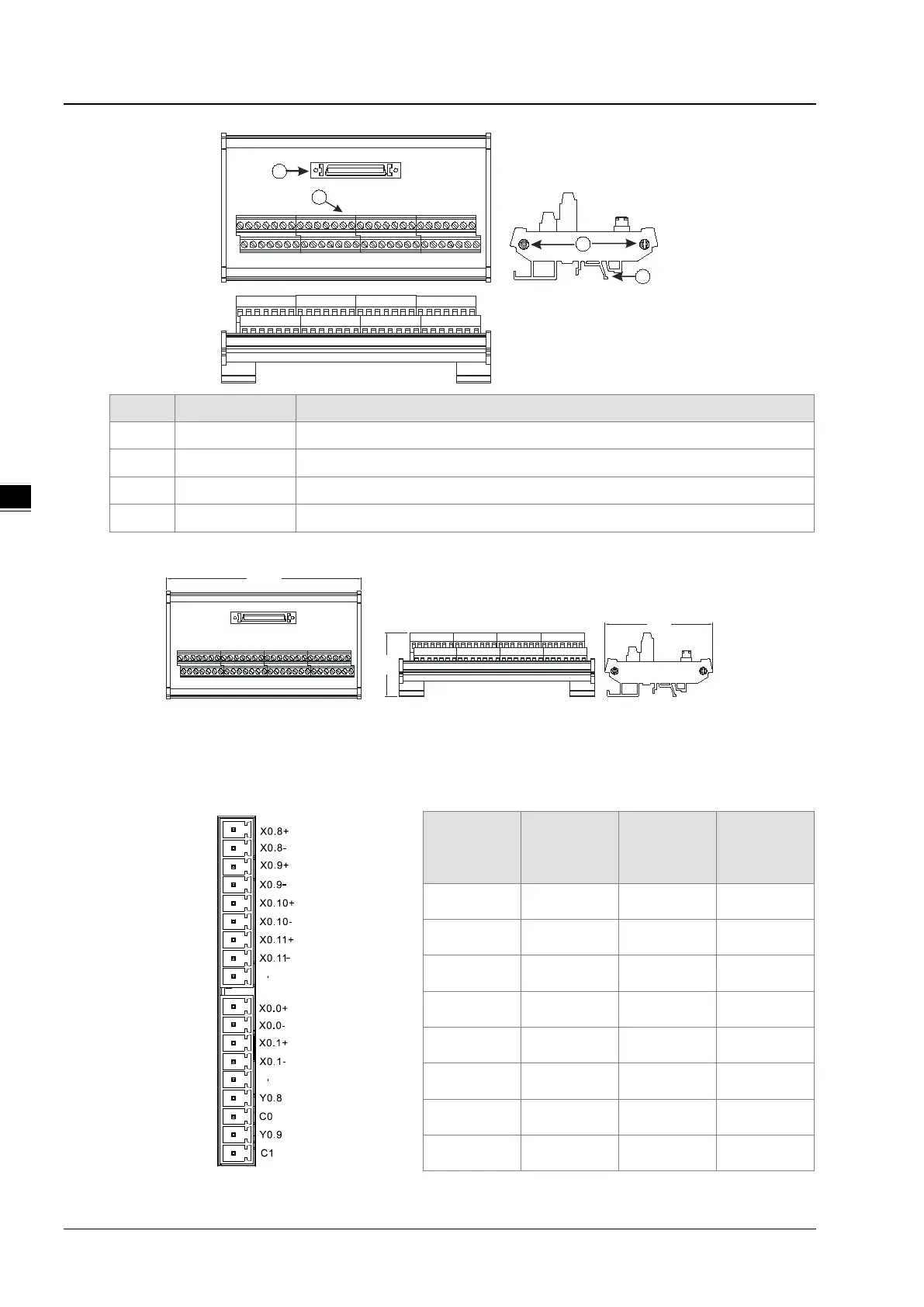

Number Name Description
1
Connector
Connecting the external terminal module and a motion control module
2
Terminals
Input/Output terminals for wiring
3 Clip Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
157
87
50.8
Dimensions are in mm
3.5.3 Arrangement of Input/Output Terminals
 AH02HC-5A
Terminal
Function
Terminal
Function
Count Count
X0.8+ CntA0+ X0.0+ Rst0+
X0.8- CntA0- X0.0- Rst0-
X0.9+ CntB0+ X0.1+ Rst1+
X0.9- CntB0- X0.1- Rst1-
X0.10+ CntA1+ Y0.8 Out0
X0.10- CntA1- C0 COM0
X0.11+ CntB1+ Y0.9 Out1
X0.11- CntB1- C1 COM1
