Delta AH Motion Series User Manual

Chapter 3 Product Specifications
3-45
3_
125
87
50.8
Dimensions are in mm.

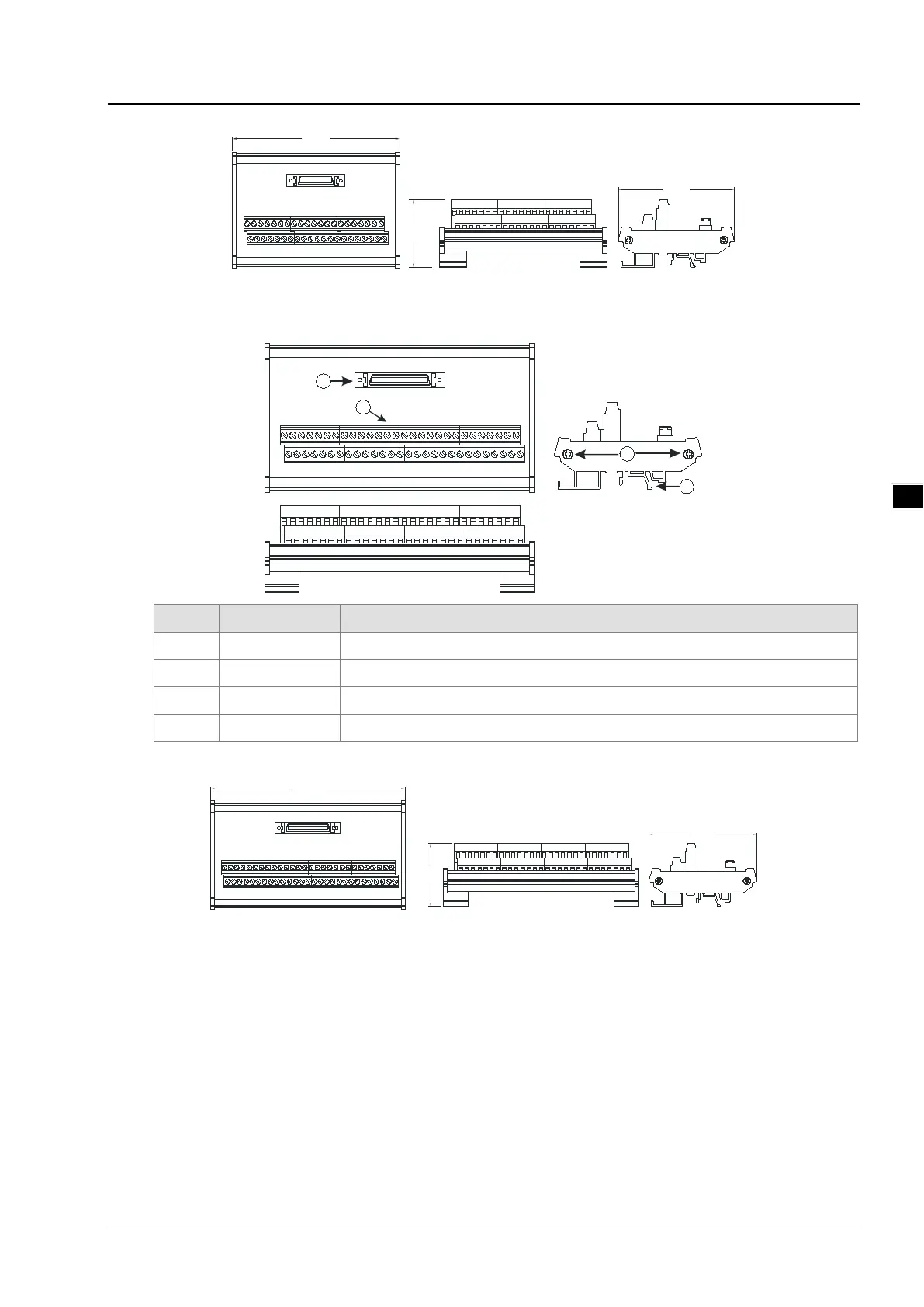

4. External terminal module for AH10PM-5A:
UB-10-IO24C(DVPAETB-IO24C)
3
4
2
1
Number
Name
Description
1
Connector
Connecting the external terminal module and a motion control module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4 Set screw Fixing the base
Dimensions:
157
87
50.8
Dimensions are in mm.
5. External terminal module for AH15PM-5A: UB-10-IO34C(DVPAETB-IO34C)
