Delta AH Motion Series User Manual

AH Motion – Hardware Manual
3-44
_3
100
Dimensions are in cm.

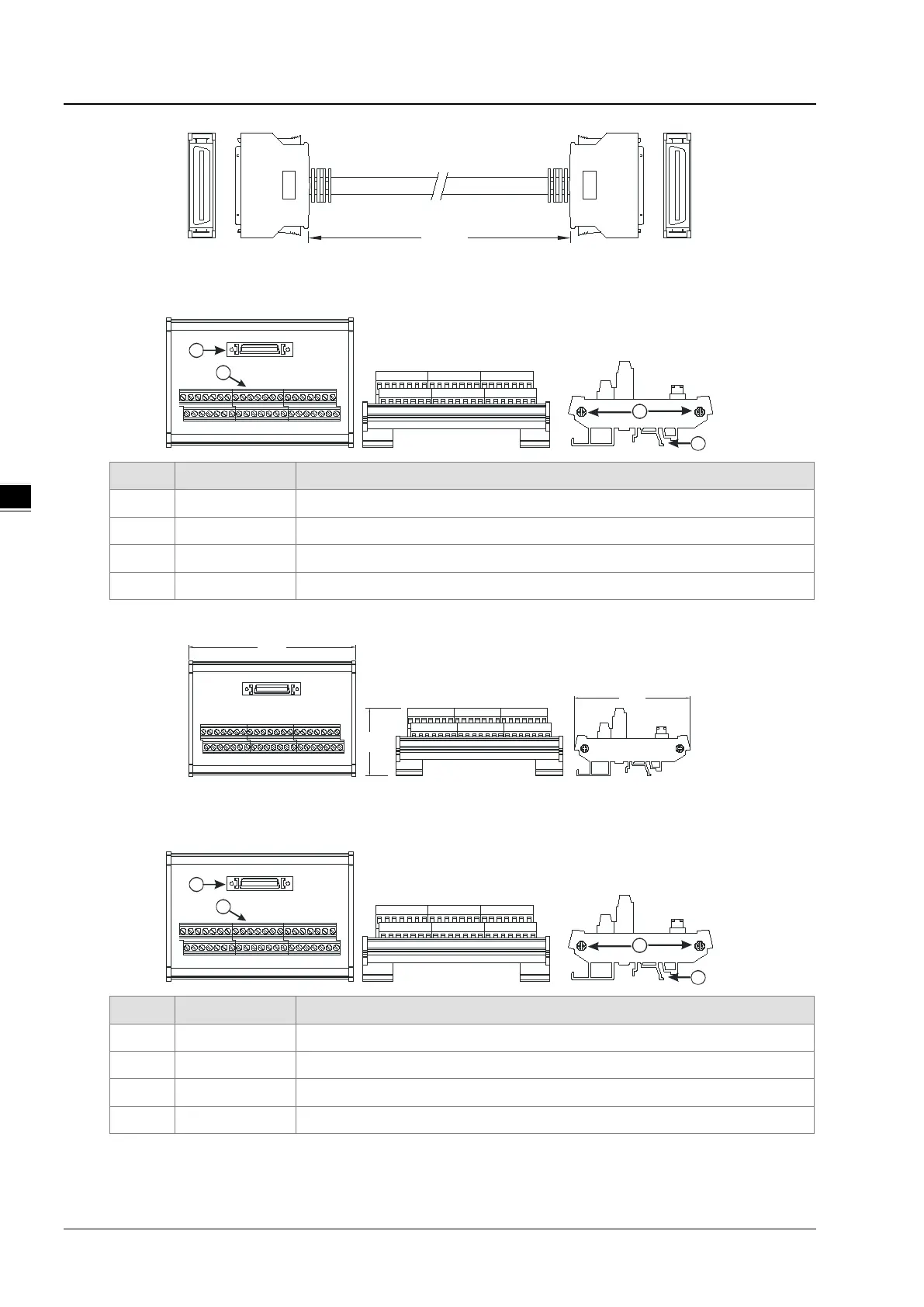

2. External terminal module for AH04HC-5A and AH20MC-5A: UB-10-IO16C(DVPAETB-IO16C)
3
4
2
1
Number
Name
Description
1
Connector
Connecting the external terminal module and a motion control module
2 Terminals Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
125
87
50.8
Dimensions are in mm.
3. External terminal module for AHxxEMC-5A: UB-10-IO22C(DVPAETB-IO22C)
3
4
2
1
Number
Name
Description
1
Connector
Connecting the external terminal module and a motion control module
2 Terminals Input/Output terminals for wiring
3
Clip
Hanging the external terminal module on a DIN rail
4
Set screw
Fixing the base
Dimensions:
