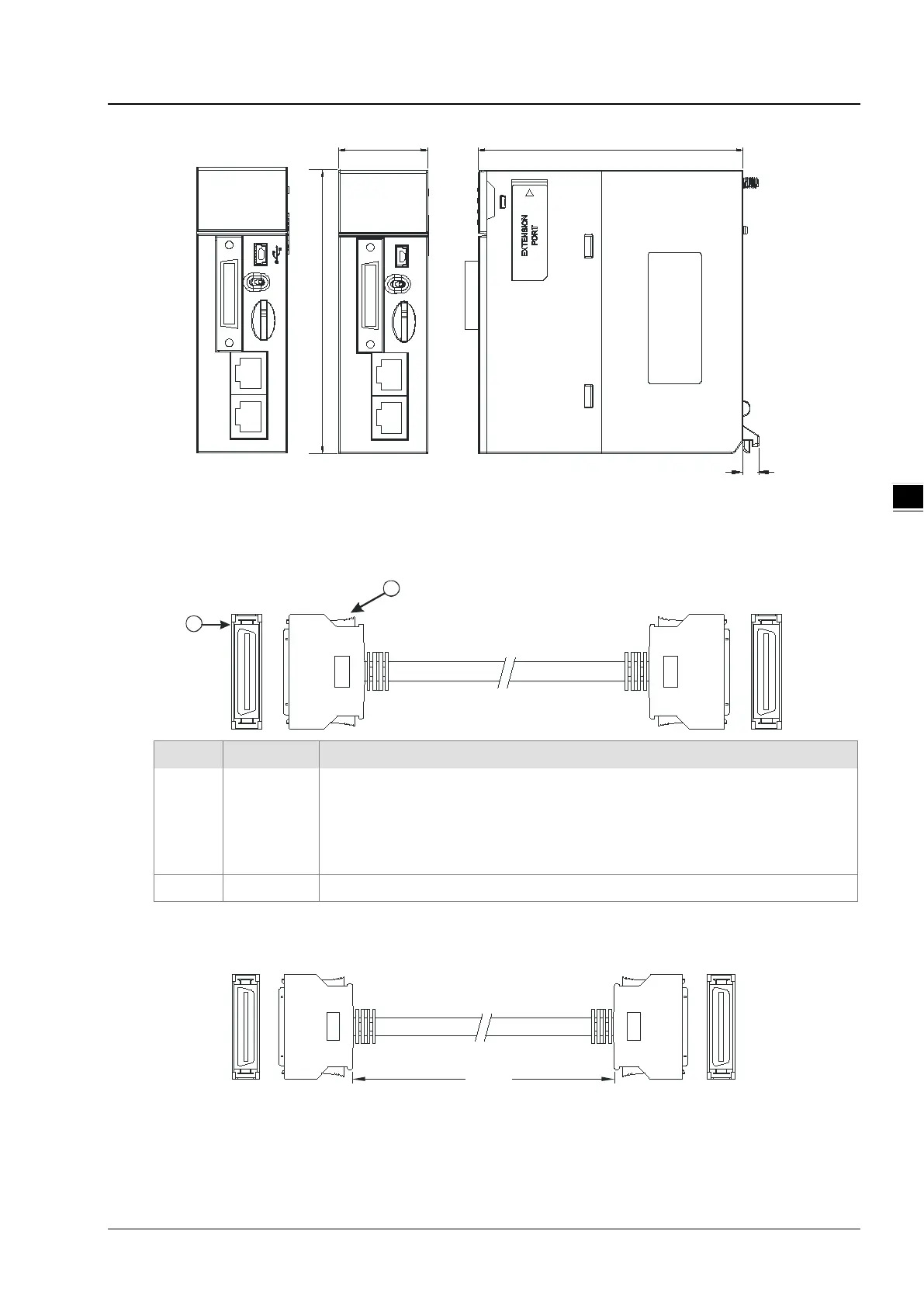

Delta AH Motion Series User Manual

Chapter 3 Product Specifications
3-43
3_
20MC20MC
Mi cro S D
DMCNet
Ethernet
CN1
NET
ETH
ERR OR
RUN
NET
ETH
ERR OR
RUN
RUN
STOP
110
35
6
103
Dimensions are in mm.
 I/O extension cable and external terminal module
1. I/O extension cable UC-ET010-13B(DVPACAB7D10), UC-ET010-15B(DVPACAB7E10)
2
1
Number
Name
Description
1 Connector
Connecting a motion control module and an external terminal module
UC-ET010-13B(DVPACAB7D10): 36-pin I/O extension cable for AH04HC-5A,
AH20MC-5A and AHxxEMC-5A.
UC-ET010-15B(DVPACAB7E10): 50-pin I/O extension cable for AH10PM-5A and
AH15PM-5A.
2 Clip Fixing the connector
Dimensions:
UC-ET010-13B(DVPACAB7D10): 36-pin I/O extension cable for AH04HC-5A, AH20MC-5A and AHxxEMC-5A
100
Dimensions are in cm.
UC-ET010-15B(DVPACAB7E10): 50-pin I/O extension cable for AH10PM-5A and AH15PM-5A
