Delta AH Motion Series User Manual

AH Motion – Hardware Manual
3-42
_3

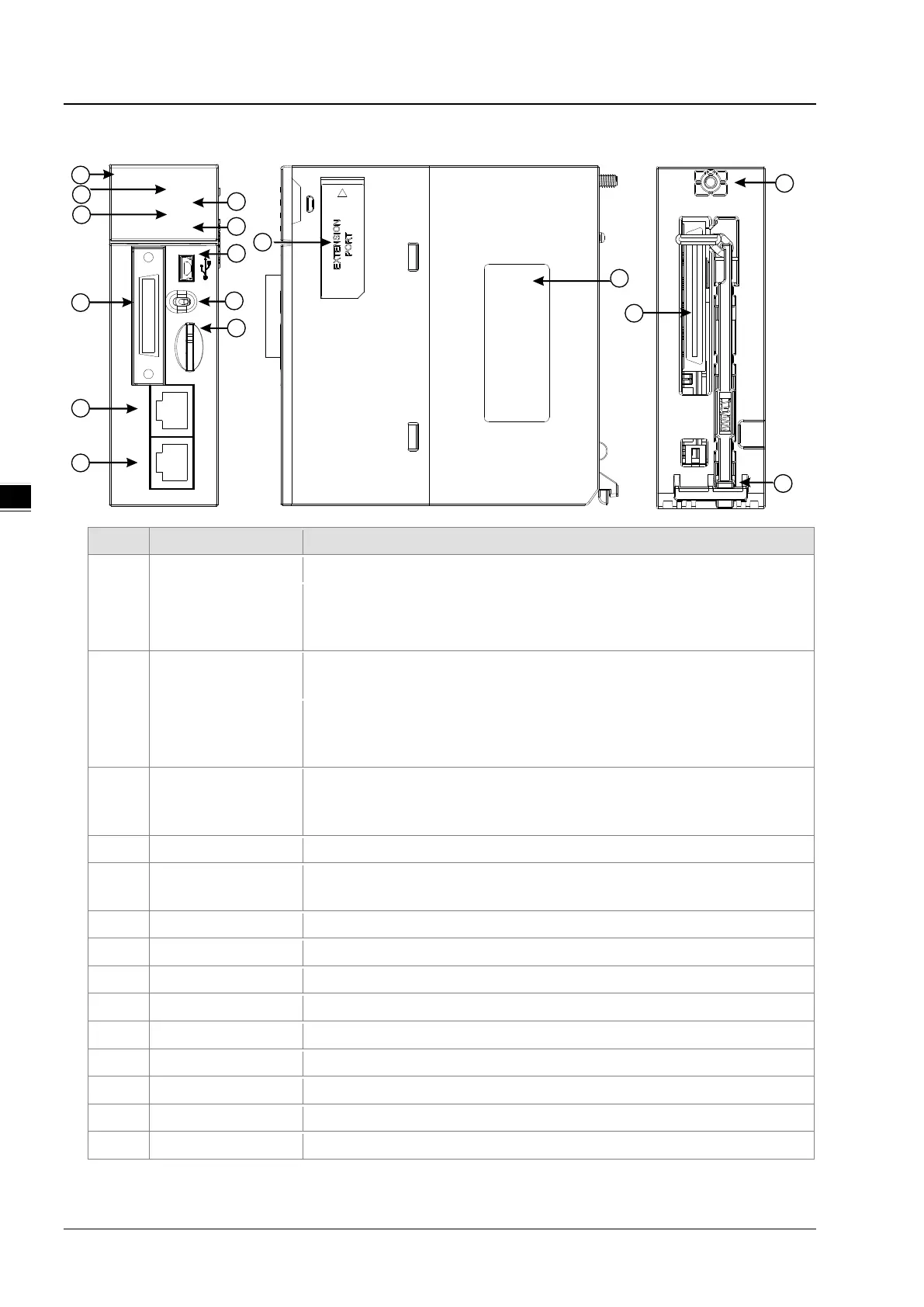

 AH20MC-5A
20MC20MC
Micro SD
DMCNetEthernet
CN1
NET
ETH
ERROR
RUN
NET
ETH
ERROR
RUN
RUNSTOP
1
12
2
3
4
7
13
6
8
9
11
10
14
15
5
16
Number
Name
Description
1 Model name Model name of the module
2
RUN LED indicator
(green)
Operating status of the module
ON: The module is running.
OFF: The module stops running.
3
ERROR LED indicator
(red)
Error status of the module
Blinking: The module is abnormal.
4
Ethernet connection
LED indicator (green)
Status of the Ethernet connection
ON: The Ethernet connection is being connected.
OFF: The Ethernet connection is disconnected.
5
DMCNET connection
LED indicator
(green)
Status of the DMCNET connection
ON: The DMCNET connection is being connected.
OFF: The DMCNET connection is disconnected.
6 USB port Providing the mini USB communication interface
7 RUN/STOP switch
RUN: The user program is executed.
STOP: The execution of the user program stops.
8
SD slot
Providing the SD interface
9
Connector
Connecting the module and an I/O extension cable.
10 DMCNET port Providing the DMCNET communication interface
11 Ethernet port Providing the Ethernet communication interface
12
Extension port
For updating the firmware
13
Label
Nameplate
14
Set screw
Fixing the module
15 Connector Connecting the module and a backplane
16
Projection
Fixing the module
Dimensions:
