Delta AH Motion Series User Manual

AH Motion – Hardware Manual
3-86
_3
Permissible load
impedance
1 kΩ~2 MΩ: ±10 V and 0 V~10 V
≧500 Ω: 1 V~5 V
Digital-to-analog
conversion
Current output
Rated output range
0 mA~20 mA
4 mA~20 mA
Hardware output
range
-0.2 mA~20.2 mA 3.8 mA~20.2 mA
Operating error
(Room temperature)
(The number of
output currents
which are averaged
is 100.)
±0.06%
Operating error (Full
temperature range)
(The number of
output currents
which are averaged
is 100.)
±0.07%
Linearity error
(Room temperature)
±0.01%
Linearity error (Full
temperature range)
±0.01%
Hardware resolution
16 bits
Permissible load
impedance
≦550 Ω

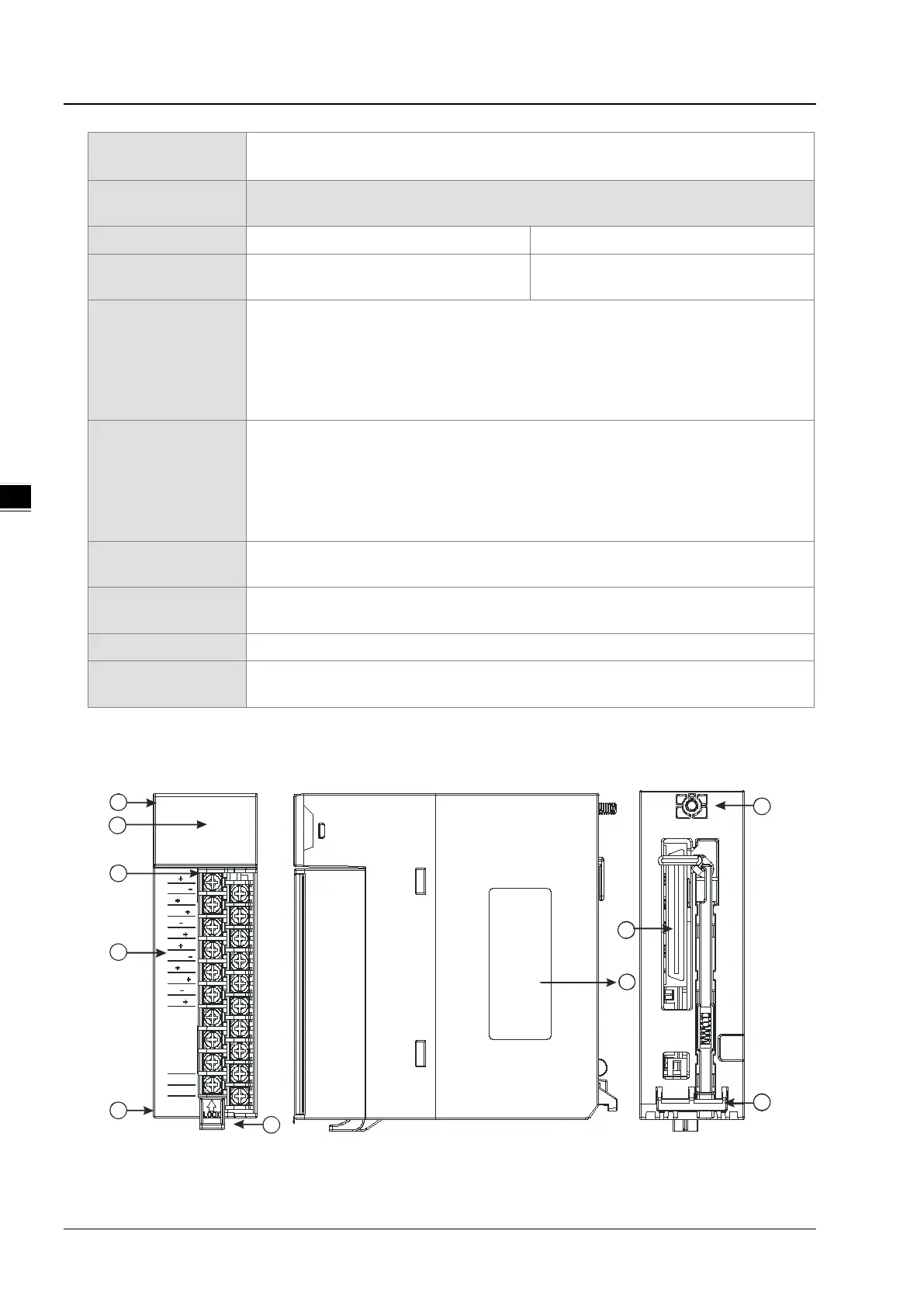

3.7.2 Profiles and Dimensions
 AH04AD-5A/AH08AD-5B/AH08AD-5C/AH04DA-5A/AH08DA-5B/AH08DA-5C/AH06XA-5A
RUN
ERROR
04AD
SG
ZP
UP
-10~+10V
-20~+20mA
VI0
I3
VI3
I1
I2
V3
VI2
V2
V1
VI1
I0
V0
1
2
3
4
7
6
8
9
10
5
