Chapter 4 Installation and Wiring

4-41

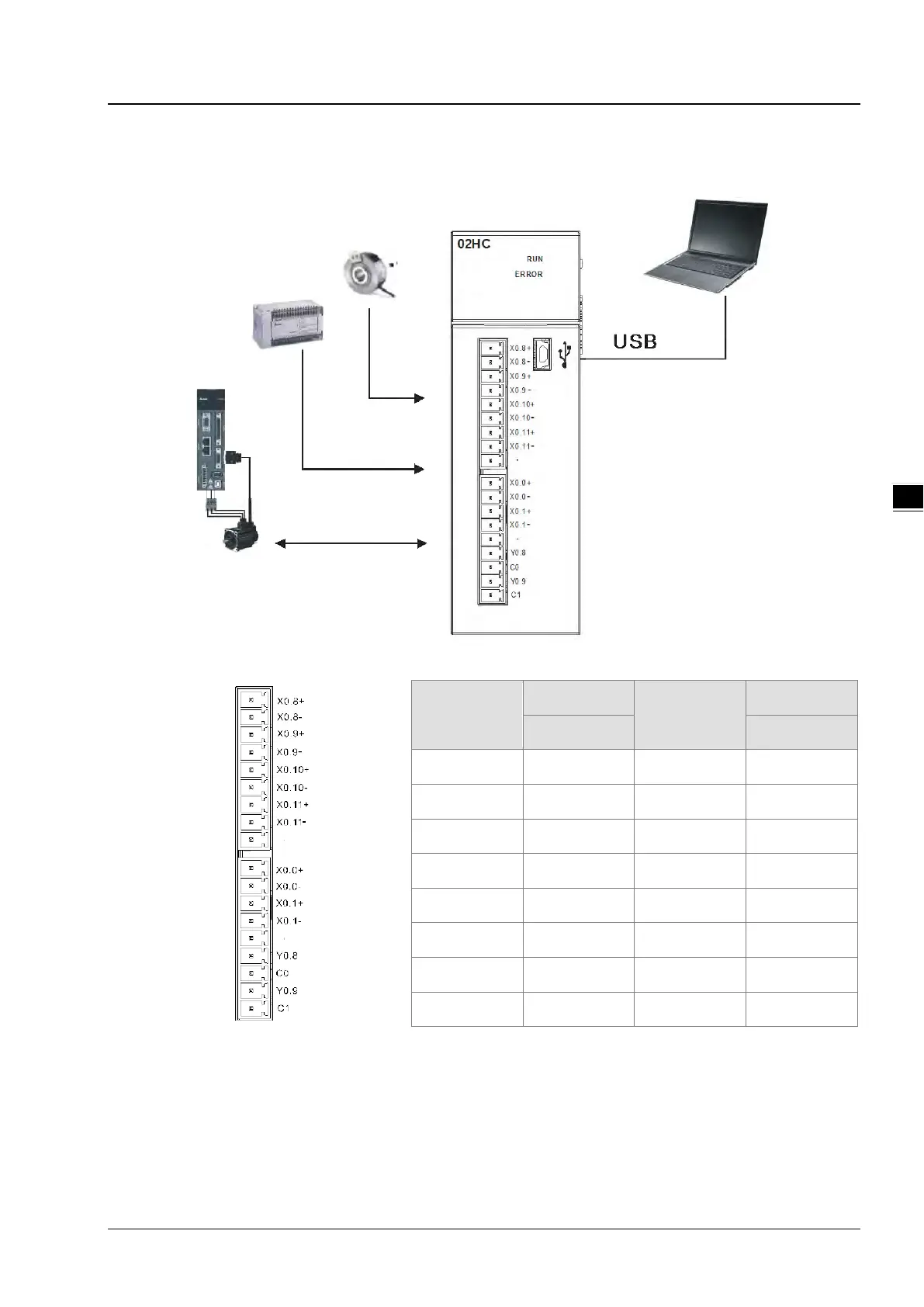

4.7.2 Wiring AH02HC-5A and AH04HC-5A

 External devices for AH02HC-5A

 Terminals on AH02HC-5A

Terminal

Function

Terminal

Function

Count Count

X0.8+ CntA0+ X0.0+ Rst0+

X0.8- CntA0- X0.0- Rst0-

X0.9+ CntB0+ X0.1+ Rst1+

X0.9- CntB0- X0.1- Rst1-

X0.10+ CntA1+ Y0.8 Out0

X0.10- CntA1- C0 COM0

X0.11+ CntB1+ Y0.9 Out1

X0.11- CntB1- C1 COM1
