Delta AH Motion Series User Manual

AH Motion – Hardware Manual
1-4
_1

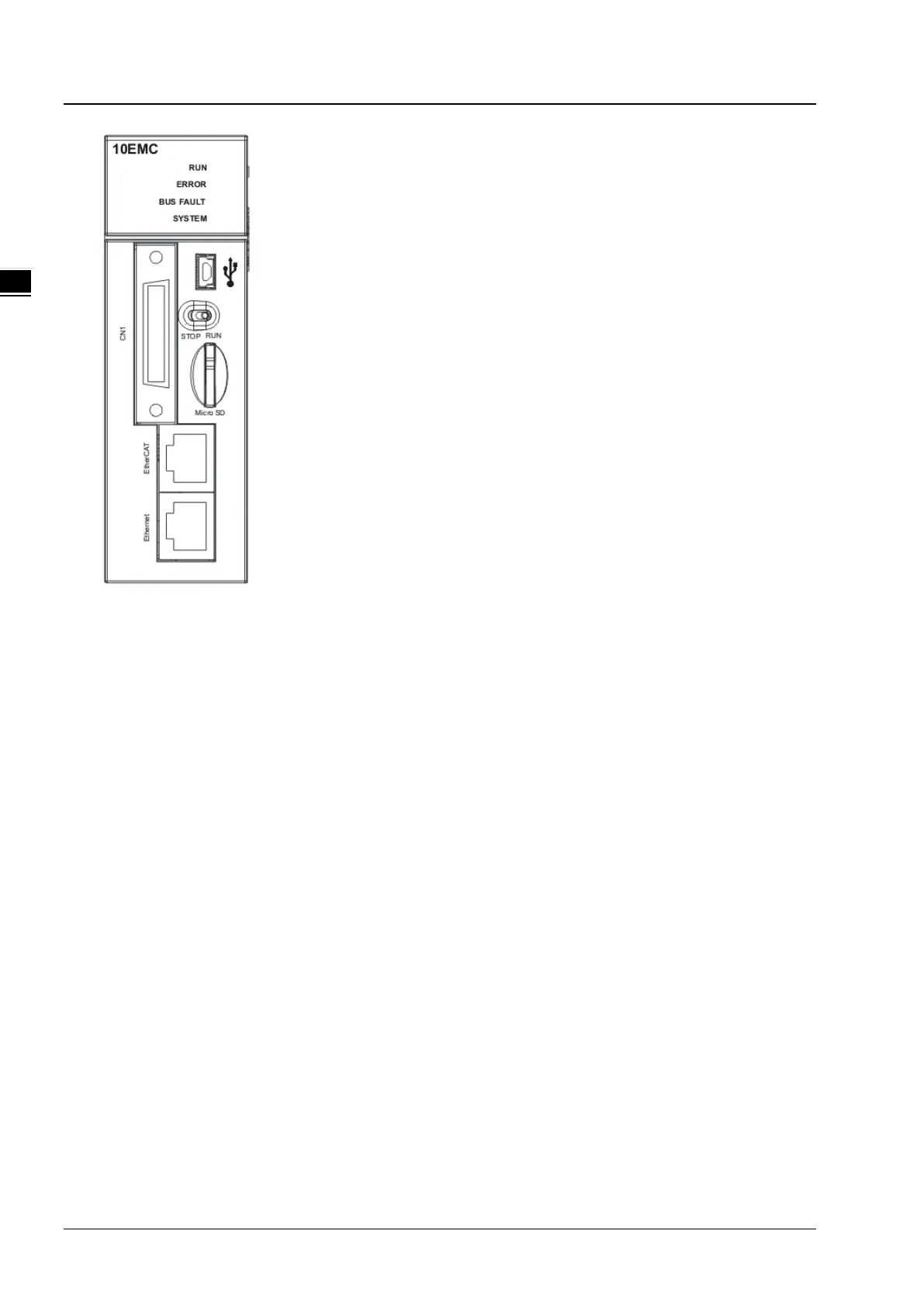

 AHxxEMC-5A provides one serial interface through USB: COM1.
 AHBP05M2-5A (AH motion backplane) provides one serial interface through terminal block: COM2.
 You can use the USB serial interface (COM1) as RS-232 and terminal block serial interface (COM2) as RS-485
according to the application. The data transfer rate can be increased from 9600 bps to 115200bps.
 ISPSoft,can perform automatic data exchange simply by filling the data exchange form in the software. Users do
not need to write any program for this purpose and can save time and efforts. For details of data exchange
between devices, refer to ISPSoft User Manual.
6. Memory card
 The memory card has the following functions.
System backup: for user program, CPU parameters, module tables, and setting values in devices.
System recovery: for user program, CPU parameters, module tables, and setting values in devices.
Parameter storage: The values in the devices
Log storage: The system error log and the system status log
7. Hot swap
 The AH motion series I/O modules support the on-line uninterruptible hot swapping. When the system runs, users
can replace the module with error without stopping the system or setting the module to offline state. After the
module is replaced, the new module will resume normal operation automatically.
