AH Motion – Hardware Manual
4-4

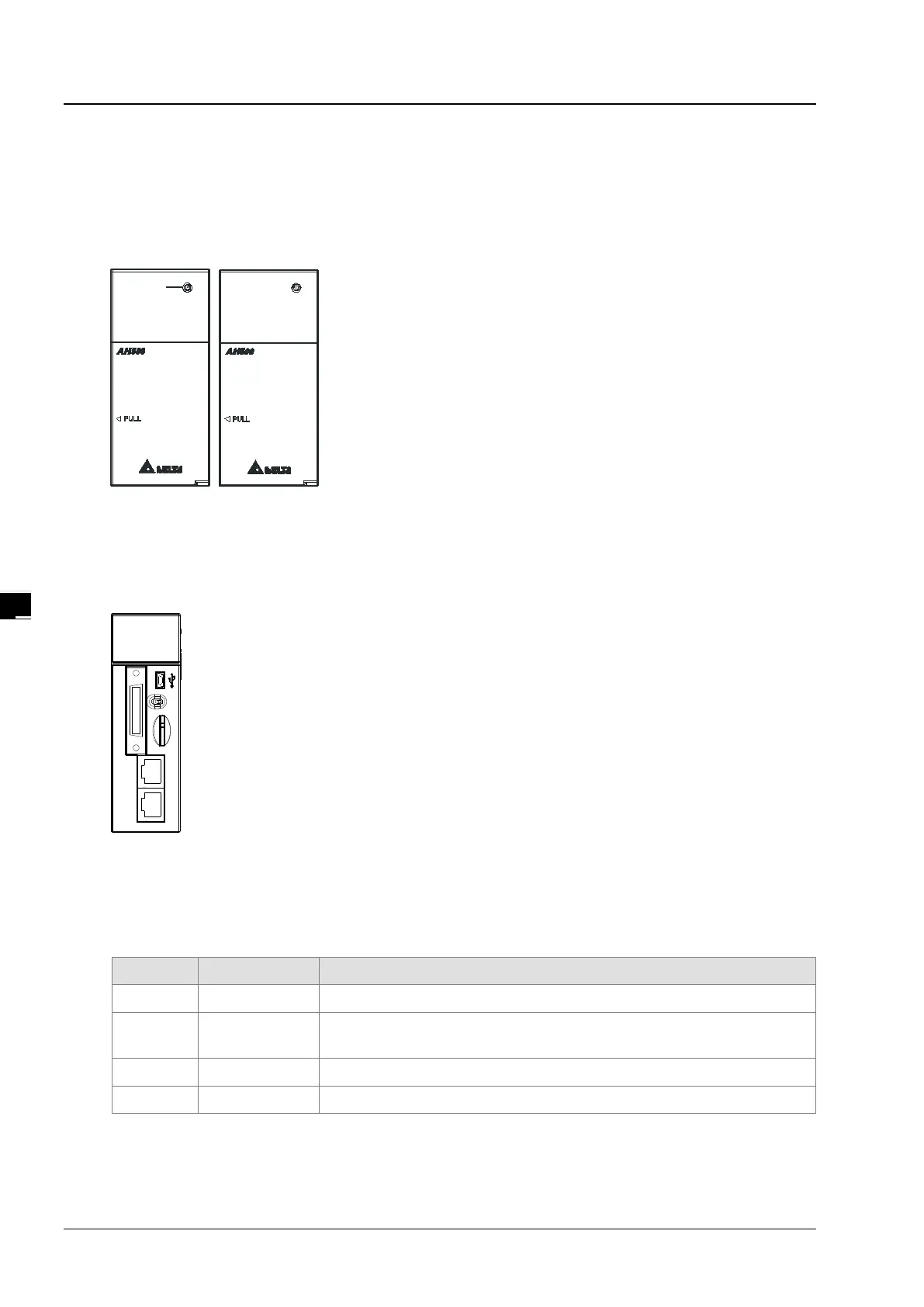

- Power supply modules
A power supply module functions to convert alternating current to direct current, or directly provides direct current.
It provides power for the modules installed on it. A Motion backplane must `be assigned a power supply module. A
power supply module has to be installed on the left-most side of a backplane.
AHPS05-5A AHPS15-5A
- Motion CPU module
A Motion CPU module is the core of a complete AH Motion system. It is responsible for controlling and managing
the whole system, and is installed in the second slot from the left on the Motion backplane.
AHxxEMC-5A
RUN
ETH
ERRO R
RUN
Eth erne t E ther CAT
CN 1
R UNS TO P
M ic ro SD
Et he rC AT
10EMC
ETH
ERRO R
- Communication cables
Several communication interfaces are built in a Motion CPU module. You can select a suitable communication
cable according to the required application.
Refer to the following table for information about the communication interfaces and the main applications.
Industrial network connecting EtherCAT slaves
EtherNet RJ45
Computer/HMI communication/remote control/data exchange/industrial
network
