Delta AH Motion Series User Manual

AH Motion – Hardware Manual
4-88
_4

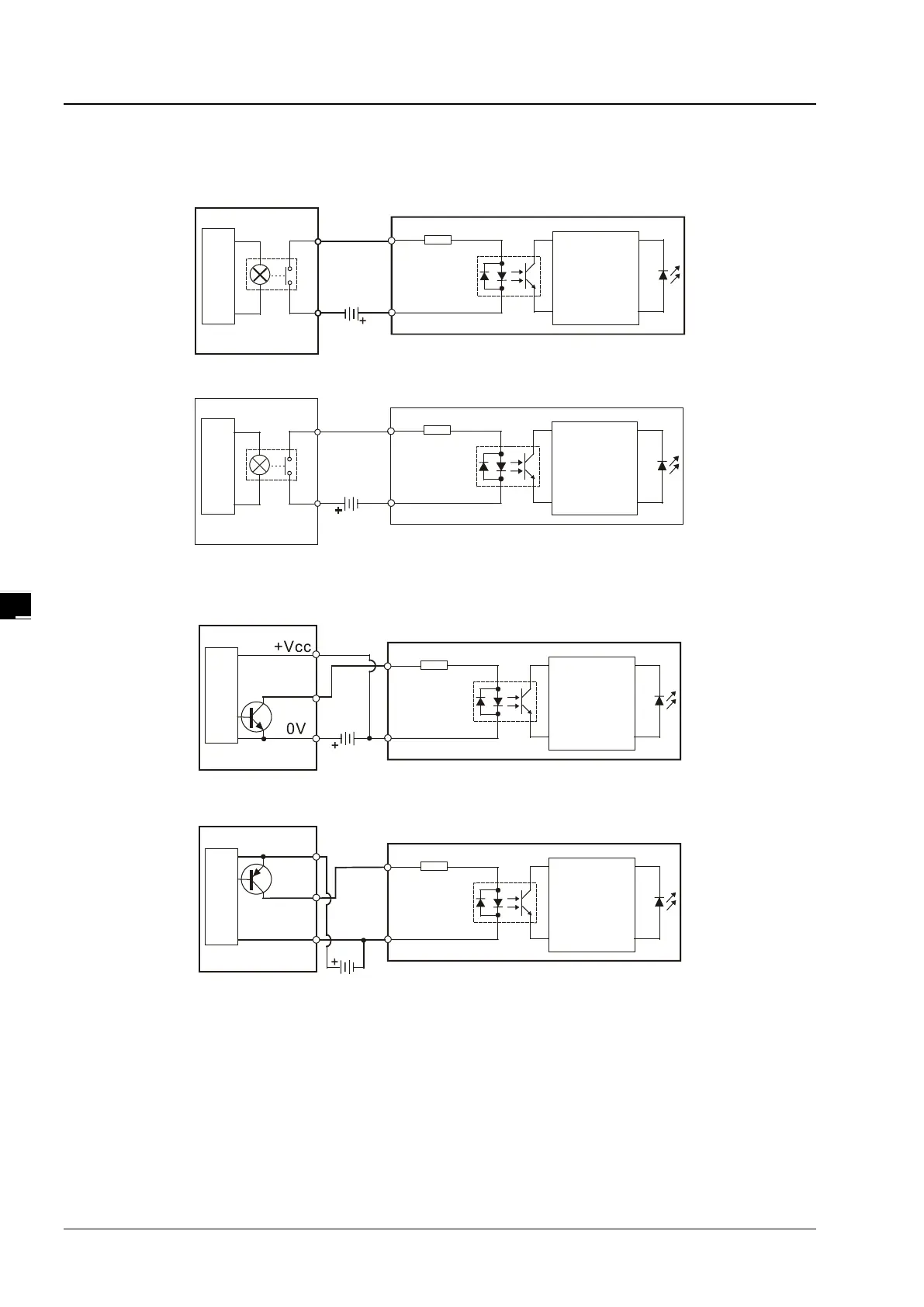

Relay Type
 NPN(Sink)
Internal
circuit
S/S
X0.0
I/O
Internal circuit
24VDC
 PNP(Source)
Internal circuit
Internal
circuit
S/S
X0.0
I/O
24VDC
Open-collector Input Type
 Sinking
(NPN transistor whose collector is open)
S/S
X0.0
I/O
24VDC
NPN
Internal circuit
Internal
circuit
 Sourcing (PNP transistor whose collector is open)
S/S
X0.0
I/O
+Vcc
0V
24VDC
PNP
Internal circuit
Internal
circuit

Delta AH Motion Series Specifications

General

Brand	Delta
Model	AH Motion Series
Category	Controller
Language	English
