AH Motion – Hardware Manual
4-96
_4
⑤

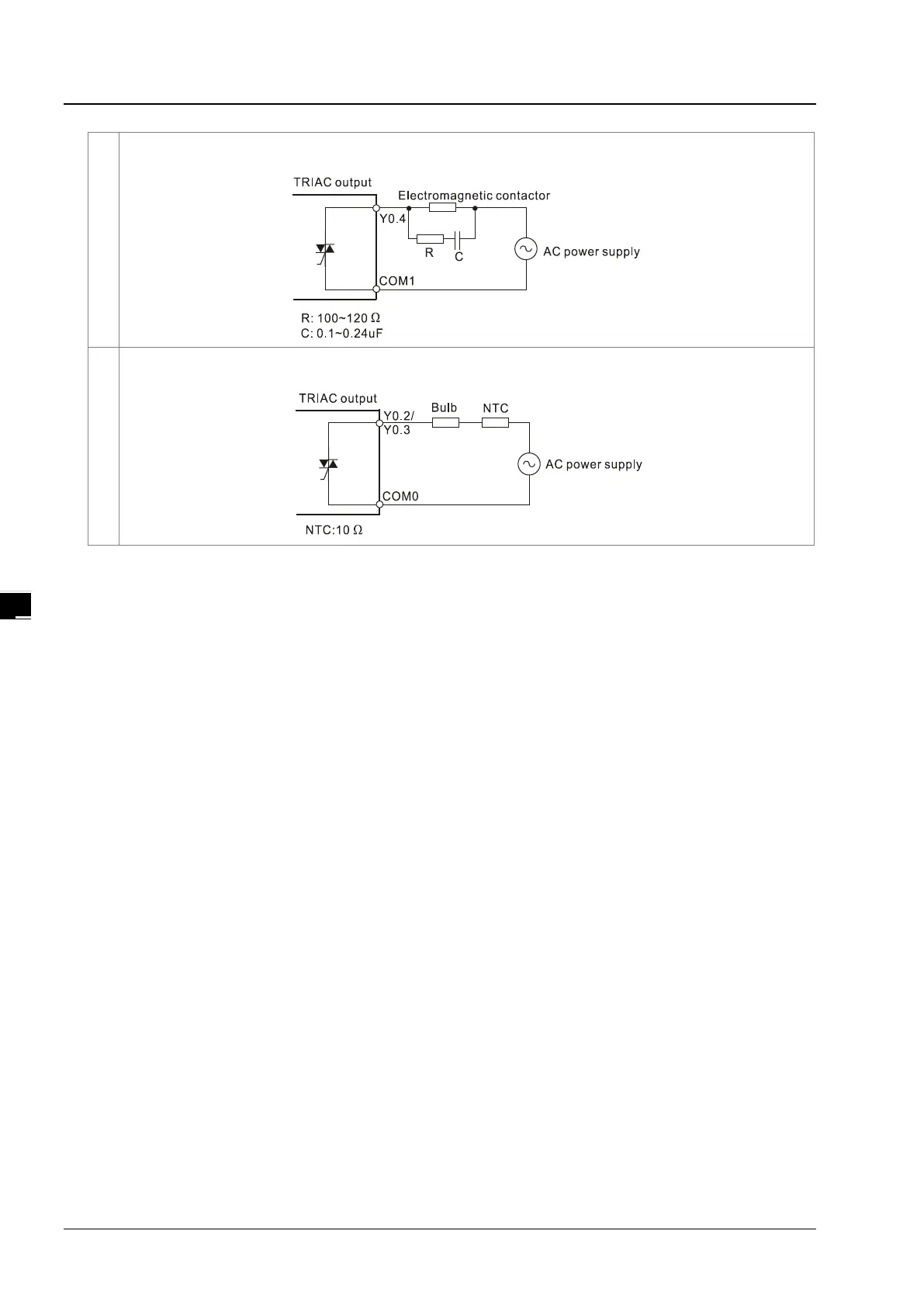

An electromagnetic contactor is used as an AC load. A resistor and a capacitor are connected in parallel to
absorb the surge voltage which occurs when the load is OFF.
⑥
A bulb (neon lamp) is used as an AC load. A thermistor is connected in series to absorb the surge current which
occurs when the load is ON.
