Chapter 3 Product Specifications
3-9

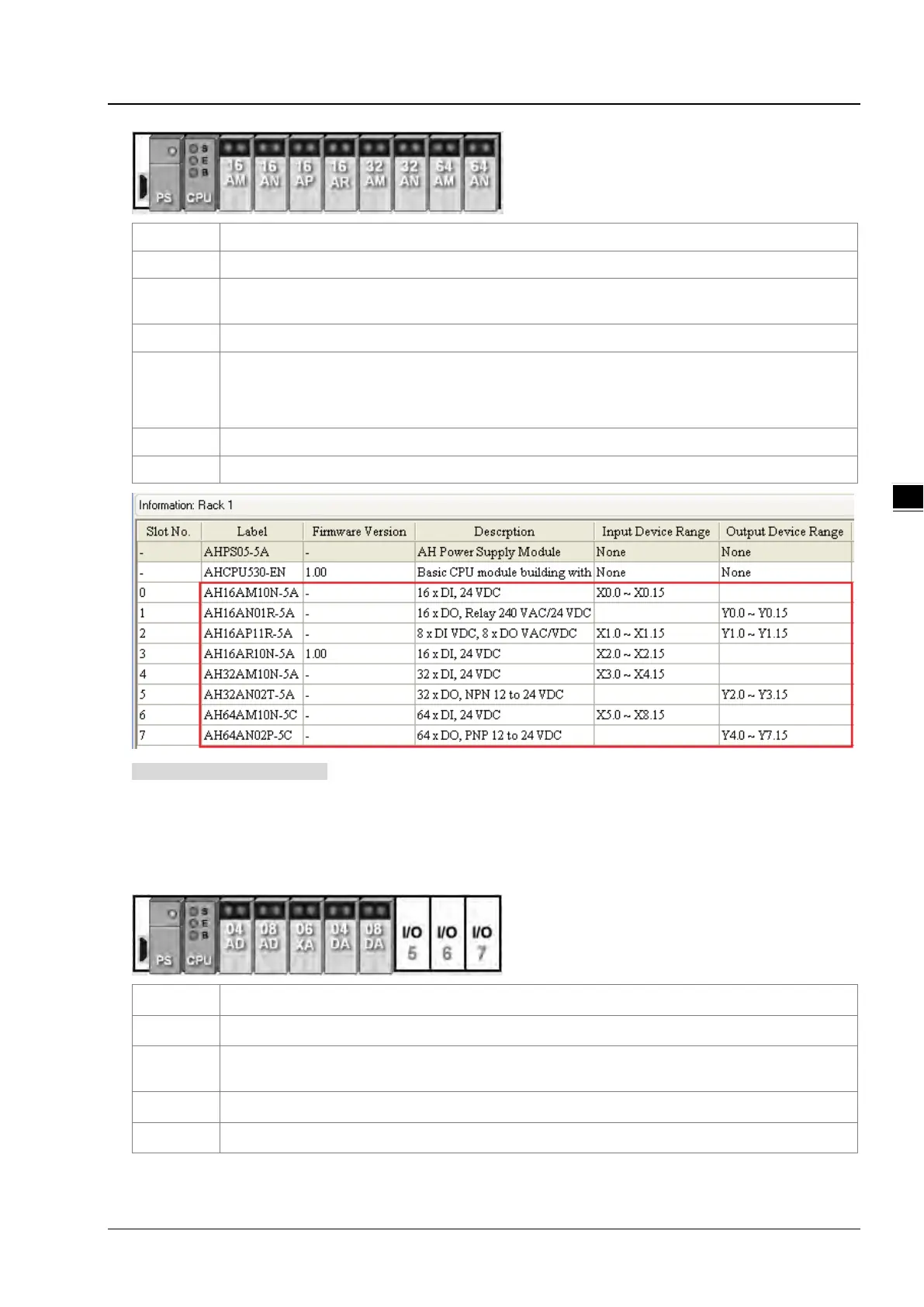

16 inputs. The input device range occupies 16 bits. (Xn.0~Xn.15)
16 outputs. The output device range occupies 16 bits. (Yn.0~Yn.15)
16AP
8 inputs and 8 outputs. The input device range occupies 16 bits, and the output device range
occupies 16 bits. (X
.0~X
.15, and Y
.0~Y
.15)
32 inputs. The input device range occupies 32 bits. (Xn.0~Xn+1.15)
32AN 32 outputs. The output device range occupies 32 bits. (Yn.0~Yn+1.15)
64 inputs. The input device range occupies 64 bits. (Xn.0~Xn+3.15)
64 inputs. The output device range occupies 64 bits. (Yn.0~Yn+3.15)
Analog Input/Output Modules
Input/Output data registers are automatically assigned to an analog input/output module through HWCONFIG in
ISPSoft according to the number of registers which is defined for the analog input/output module. A channel occupies
two words.
Note: The below diagram only shows the list of the modules and is not an actual configuration.
4 input channels. The input device range occupies 8 data registers.
08AD
8 input channels. The input device range occupies 16 data registers
06XA
4 input channels, and 2 output channels. The input device range occupies 8 data registers, and the
output device range occupies 4 data registers.
4 output channels. The output device range occupies 8 data registers
8 output channels. The output device range occupies 16 data registers.
