Delta AH Motion Series User Manual

Chapter 3 Product Specifications
3-15
3_
Network Modules
You can assign input registers and output registers to a network module through HWCONFIG in ISPSoft. The input
registers should be within the range between D0 and D65535, and the output registers should be within the range
between D0 and D65535. Take AH10EN-5A* for example. The original input registers are D0~D19. You can change
the input device range from D0~D19 to D150~D169.

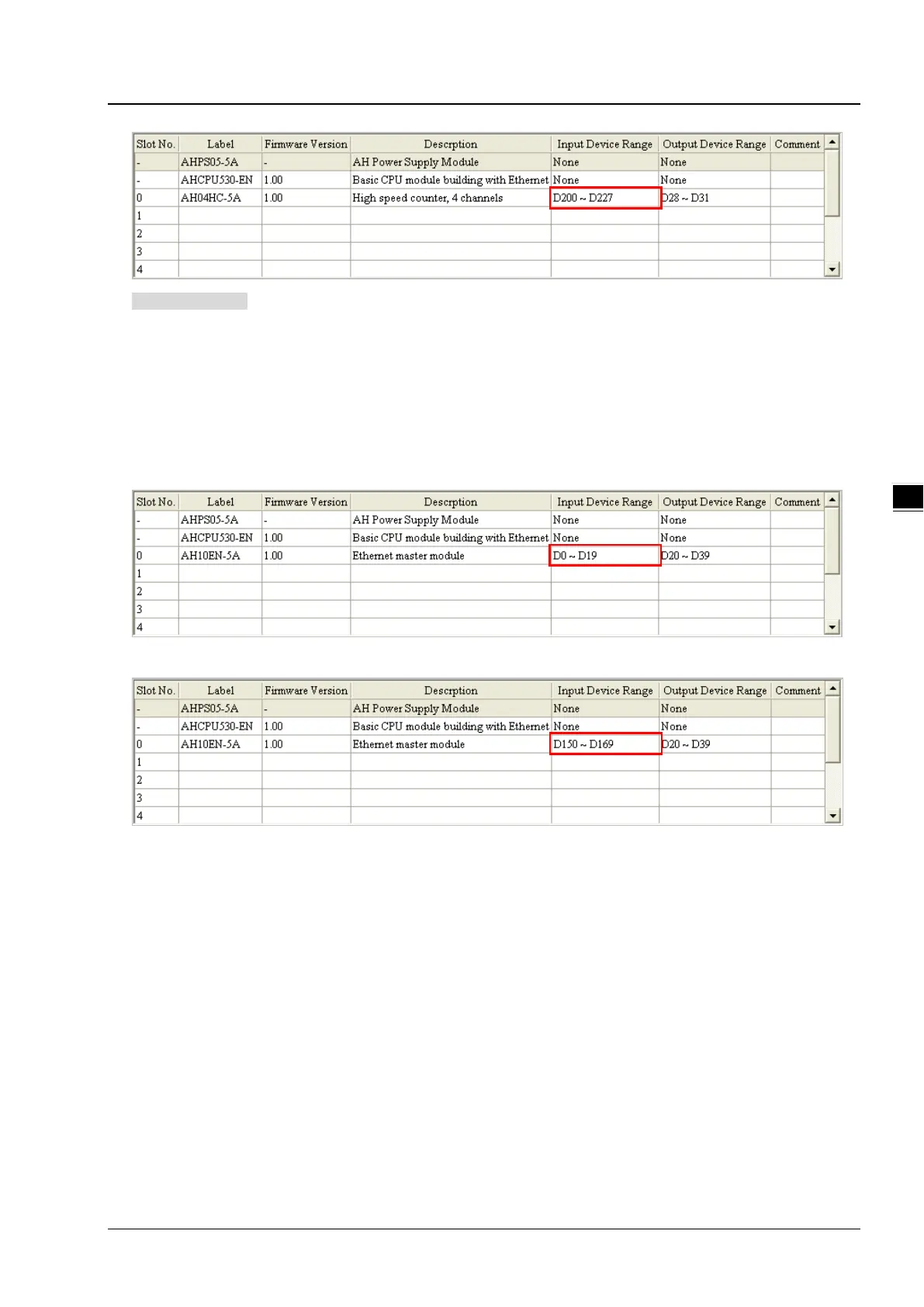

*Note: AH10EN-5A is not supported by AHxxEMC-5A The diagram below is only a demonstration on changing input
device range.
 The default input device range: D0~D19
 The user-defined input device range: D150~D169
