AH Motion – Hardware Manual
3-40
_3
Number
Name
Description
STOP: The execution of the user program stops.
7
SD slot
Providing the SD interface
8 Connector Connecting the module and an I/O extension cable
9
Ethernet port
Providing the Ethernet communication interface
10
Extension port
Updating the firmware
11
Label
Nameplate
12
Set screw
Fixing the module
13
Connector
Connecting the module and a backplane
14
Projection
Fixing the module

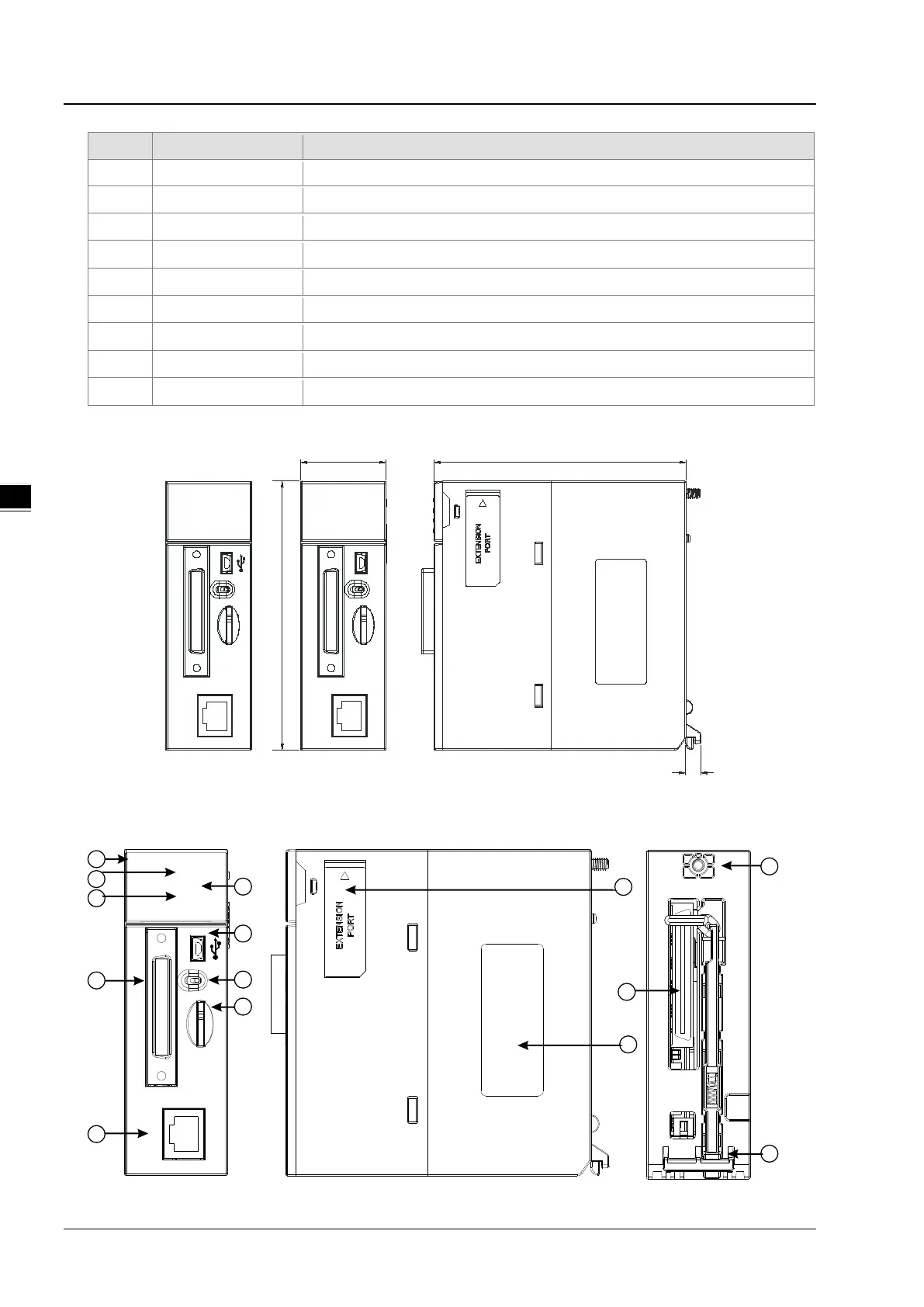

Dimensions:
10PM
M ic ro S D
Ethernet
RUN
STO P
E RROR
ETH
RUN
CN1
110
35
6
103
Dimensions are in mm.
 AH15PM-5A
15PM
Micro SD
Ethernet
RUNSTOP
ERROR
ETH
RUN
CN1
1
12
2
3
4
7
13
6
8
9
11
10
14
5
