Delta ASDA-A2 Series User Manual

Chapter 9 Communications ASDA-A2
Revision February, 2017 9-7

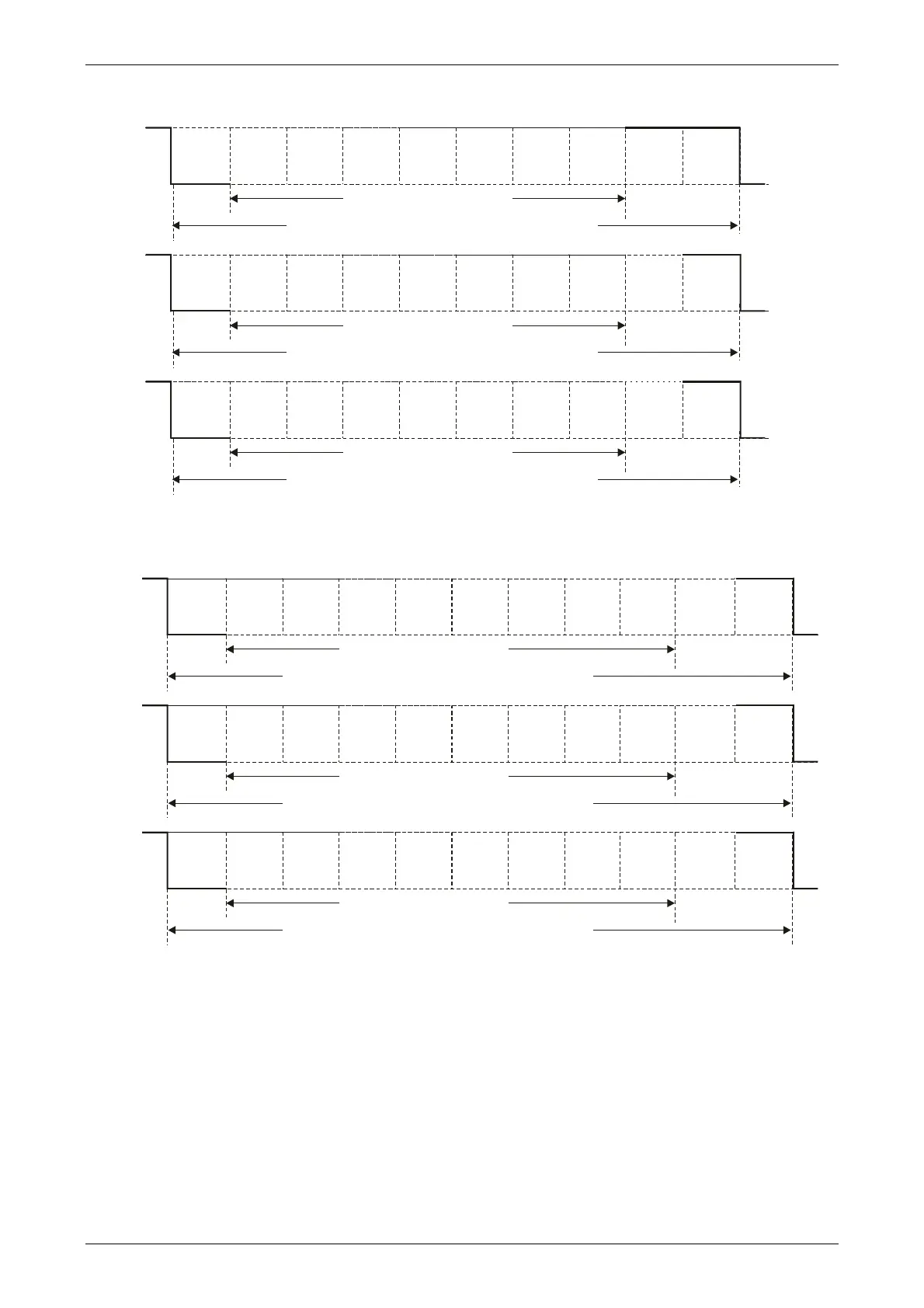

10-bit character frame (For 7-bit character)
7N2
Start
bit
01
2
3456
Stop
bit
7-data bits
10-bits character frame
Stop
bit
7E1
Even
parity
Start
bit
01
2
3456
Stop
bit
7-data bits
10-bits character frame
7O1
Odd
parity
Start
bit
01
2
3456
Stop
bit
7-data bits
10-bits character frame
11-bit character frame (For 8-bit character)
8N2
Start
bit
01
2
3456
Stop
bit
8-data bits
11-b its character fr ame
Stop
bit
7
8E1
Start
bit
01
2
3456
Stop
bit
8-data bits
11-b its character fr ame
7
Even
parity
8O1
Start
bit
01
2
3456
Stop
bit
8-data bits
11-b its character fr ame
7
Odd
parity
